G125-324349600

Gecko-SL DIL Male Crimp Connector Housing, without screw fixings, 17+17 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleNone fitted
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.865g
Dimensions32.70 x 6.50 x 8.40

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

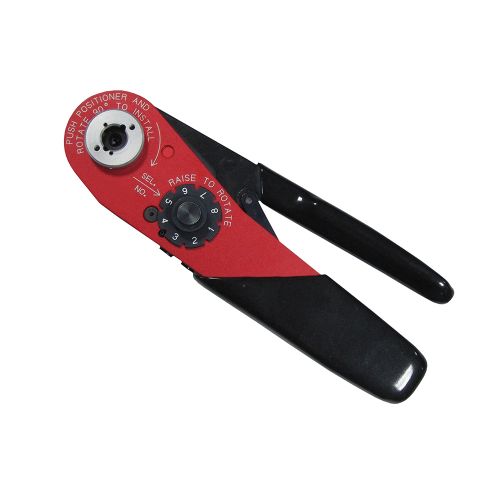

Z125-900

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

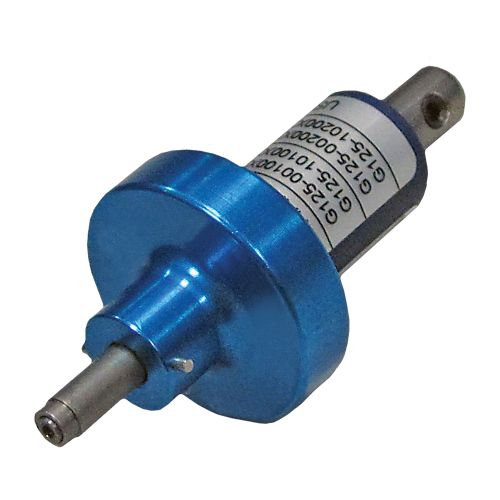

Z125-901

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-902

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-96434F1

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-0200005

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

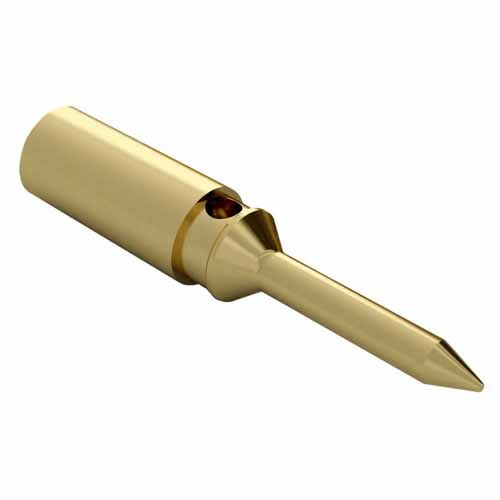

G125-1010005

 View Details
Image 1 Image 1

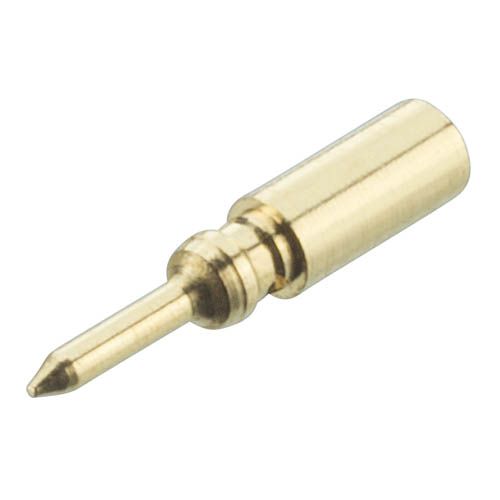

G125-1020005

 View Details
Image 1 Image 1

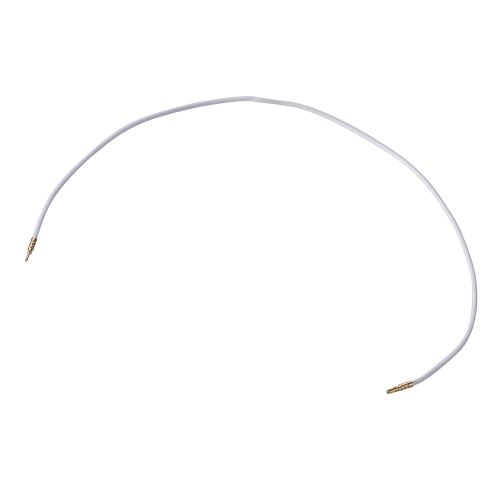

G125-MW10150F94

 View Details
Image 1 Image 1

G125-MW10150L94

 View Details
Image 1 Image 1

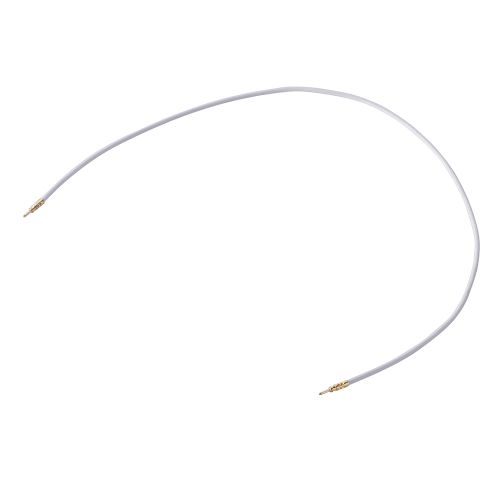

G125-MW10150M94

 View Details
Image 1 Image 1

G125-MW10300F94

 View Details
Image 1 Image 1

G125-MW10300M94

 View Details
Image 1 Image 1

G125-MW10450L94

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-224349600

 View Details
Image 1 Image 1

G125-2243496F2

 View Details
Image 1 Image 1

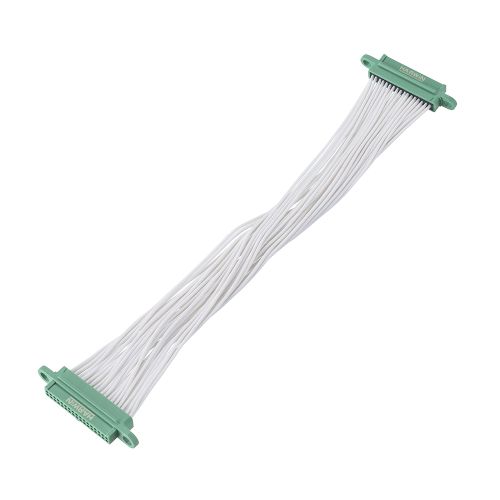

G125-FC13405F0-0150F0

 View Details
Image 1 Image 1

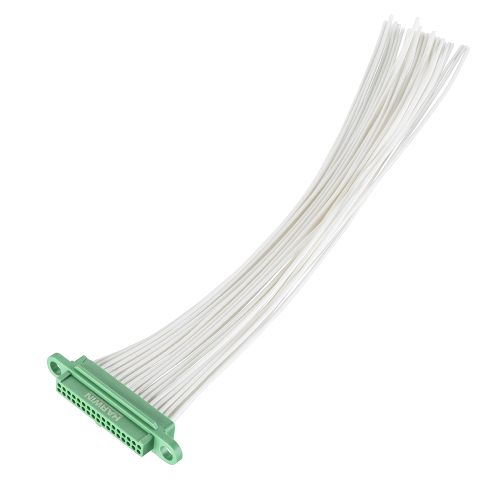

G125-FC13405F0-0150L

 View Details
Image 1 Image 1

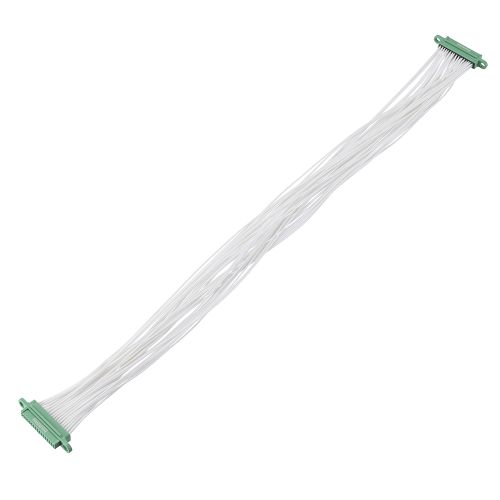

G125-FC13405F0-0300F0

 View Details
Image 1 Image 1

G125-FC13405F0-0450L

 View Details
Image 1 Image 1

G125-FC23405F0-0150F0

 View Details
Image 1 Image 1

G125-FC23405F0-0150L

 View Details
Image 1 Image 1

G125-FC23405F0-0300F0

 View Details
Image 1 Image 1

G125-FC23405F0-0450L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-3243496M3

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

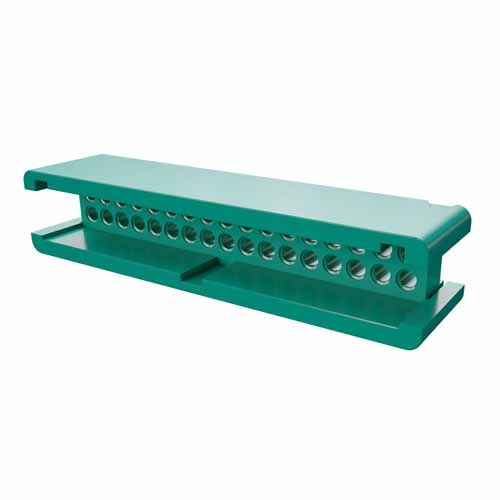

G125-3043496L0

View Details

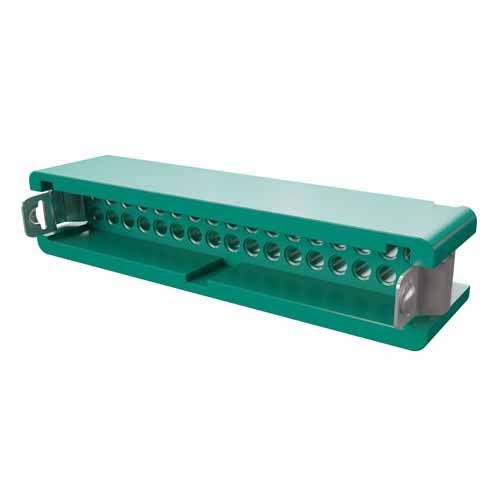

G125-3043496L4

View Details

G125-3243496M1

View Details

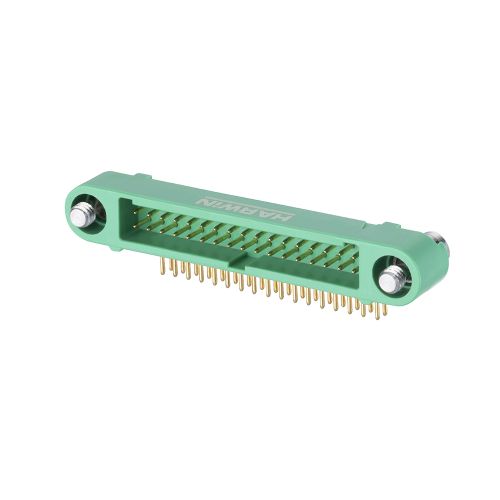

G125-MH13405M3P

View Details
