G125-96420F1

Gecko-SL Cable Metal Backshell, with hexagonal socket fixings, for 10+10 contact housings

Download Datasheet Request Sample

Factory Lead Time (wks): 20
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
10 $90.131 $901.31 Bulk/Loose
25 $83.104 $2077.6 Bulk/Loose
50 $81.238 $4061.9 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
OrientationStraight
Connection TypeCable (Crimp)
Number Of Rows2
Number Of Contacts20
Environmental Ratings-65°C to +150°C
Jackscrew StyleFloating Screw-Lok with Hex Socket Head (Standard Gender or Reverse Fix)
Housing MaterialAluminium Alloy
Weight5.884g
Dimensions28.05 x 5.70 x 23.80
End StackableNo
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Housings

Articles from this product series can be use in the following assortments:

Use with Mating Products

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

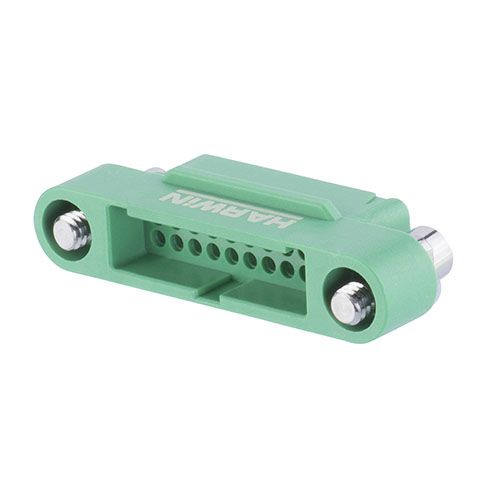

G125-3242096M3

View Details

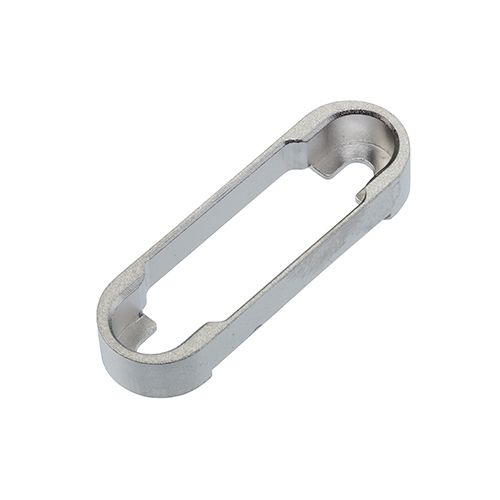

G125-9602002
