G125-324209600

Gecko-SL DIL Male Crimp Connector Housing, without screw fixings, 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: =VLOOKUP(H434,'[1]trustpart 2025'!$B$2:$D$15982,3,0)
Quantity Unit Price Ext Price Packaging
1 $5.62 $5.62 Bulk/Loose
10 $4.82 $48.2 Bulk/Loose
100 $4.49 $449 Bulk/Loose
250 $3.93 $982.5 Bulk/Loose
500 $3.81 $1905 Bulk/Loose
1000 $3.25 $3250 Bulk/Loose
2500 $3.03 $7575 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Number Of Rows2
Number Of Contacts20
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Jackscrew StyleNone fitted
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.61g
Dimensions23.95 x 6.50 x 8.40
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Use with Positioner

Articles from this product series can be use in the following assortments:

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Hoods

Articles from this product series can be use in the following assortments:

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

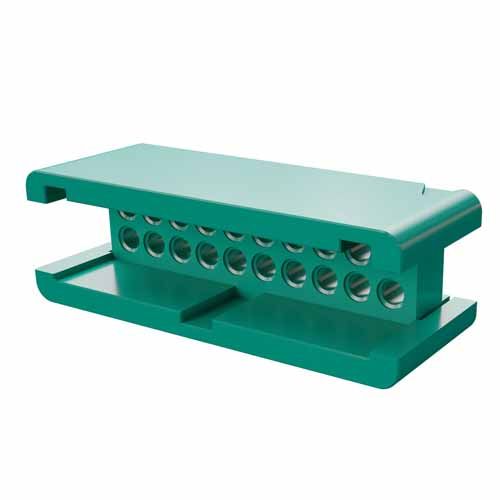

G125-3042096L0

View Details

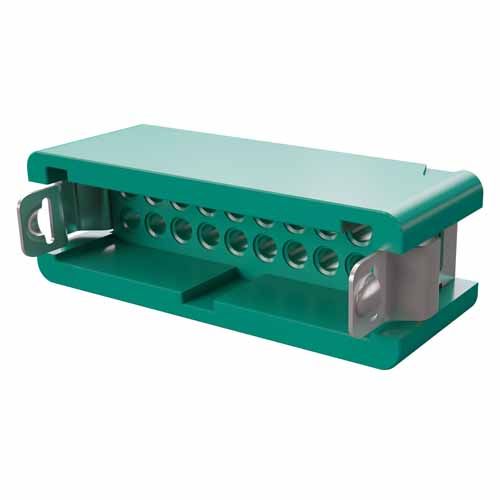

G125-3042096L4

View Details

G125-3242096M1

View Details

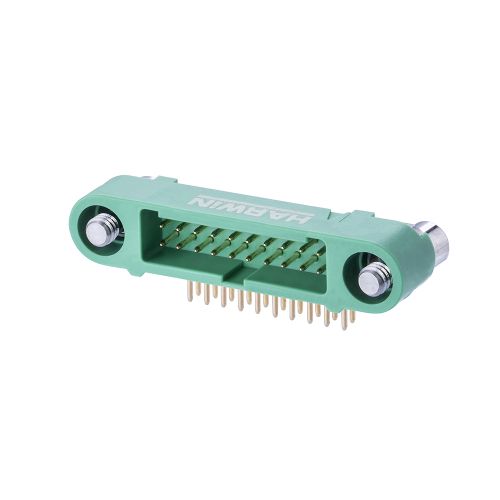

G125-MH12005M3P
