G125-MH10805M4-1AD1ADP

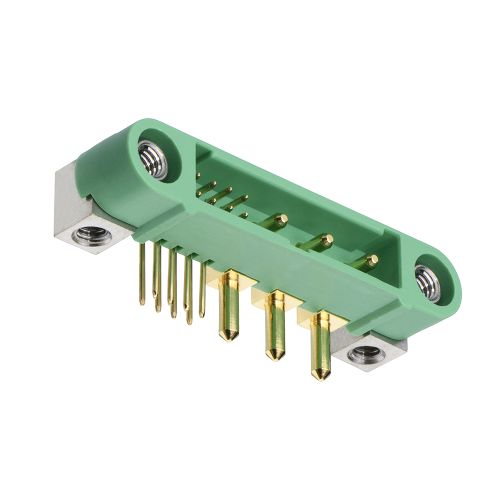

Gecko-MT Male Horizontal Throughboard Connector, internally threaded screw fixings with board mount capability, gold, pick & place (cut tape packing), 1-power + 8-signal + 1-power

Download Datasheet Request Sample
In-Stock: 2
Factory Lead Time (wks): 18
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
10 $55.243 $552.43 Tape and Reel Strip
100 $47.562 $4756.2 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of RowsMixed
Number Of Contacts8
Current RatingSignal = 2.8A max individual contact, 2A max simultaneous; Power = 10A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.83g
Dimensions21.50 x 7.70 x 8.75
Above Board Height5.25mm
End StackableNo
Mating Pin SizeØ0.4mm, Ø1mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c
