G125-MS11005L1P

Gecko DIL Male Vertical Surface Mount Connector with Latches, gold, pick & place (cut tape packing), 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
1000 $4.95 $4950 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleLocking Latch
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight0.411g
Dimensions10.20 x 5.80 x 9.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Separator Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z125-9261000

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-2041096L0

 View Details
Image 1 Image 1

G125-F1MS110-075-FS1

 View Details
Image 1 Image 1

G125-FC11005L0-0150F

 View Details
Image 1 Image 1

G125-FC11005L0-0150L

 View Details
Image 1 Image 1

G125-FC21005L0-0150F

 View Details
Image 1 Image 1

G125-FC21005L0-0150L

 View Details
Image 1 Image 1

G125-FS11005L0P

 View Details
Image 1 Image 1

G125-FV11005L0P

 View Details
Image 1 Image 1

G125-FV21005L0P

 View Details
Image 1 Image 1

G125-MC11005L0-0150F

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

G125-MS11005L1R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

G125-MH11005L1P

View Details

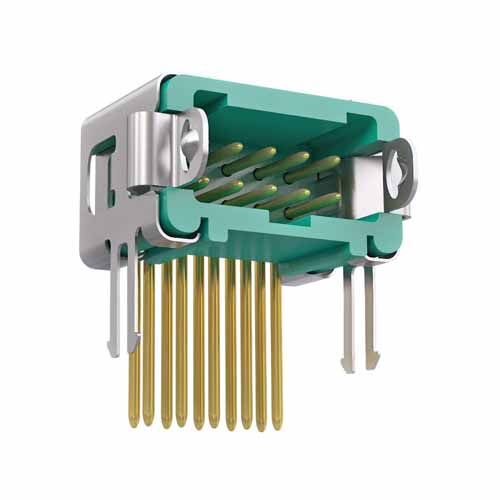

G125-MH21005L2P
