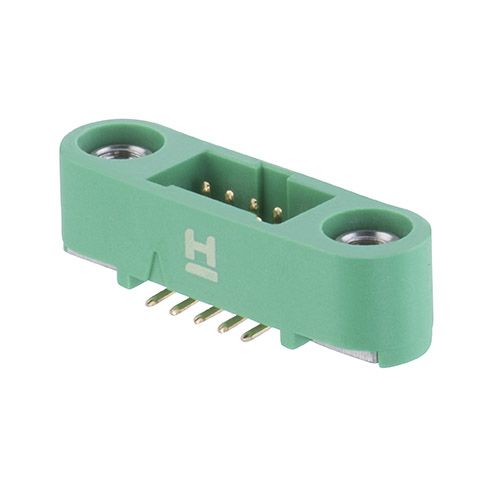

G125-MS11005M2P

Gecko-SL DIL Male Vertical Surface Mount Connector, screw fixings with 5mm board mount studs, gold, pick & place (cut tape packing), 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $9.583 $958.3 Tape and Reel Strip
500 $8.753 $4376.5 Tape and Reel Strip

Product Attributes

ManufacturerHarwin
PackageTape and Reel Strip
Product FamilyHRi
Product StatusActive
RangeGecko
Pitch1.25mm (0.049")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts10
Current Rating2.8A max individual contact, 2A max simultaneous (25°C)
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Screw-Lok with Board Mount Stud (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.004g
Dimensions17.70 x 5.80 x 9.90
Above Board Height4.98mm
End StackableNo
Mating Pin SizeØ0.4mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Accessory
