H2176-05

Ø1mm Terminal Pin, 9.5mm high, for 1.6mm panel thickness, gold

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 1000		 Quantity Unit Price Ext Price Packaging
30000 $0.183 $5490 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyEZi
Product StatusActive
RangeHARDWARE
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Weight0.08g
Dimensions11.61 x Ø1.78
Above Board Height9.53mm
Mating Pin SizeØ1mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Punch And Die Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z2176-00

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

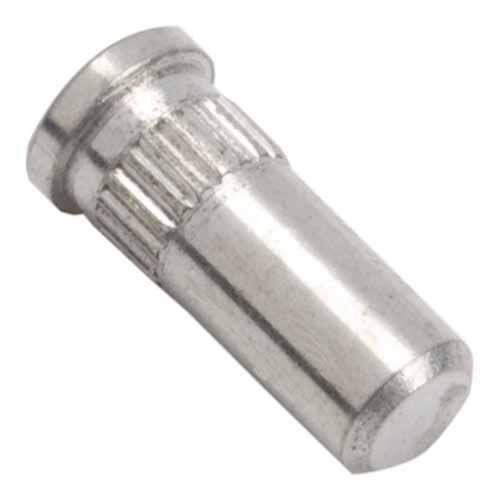

H3161-01
