KA1-MH10405M3

Headers, Receptacles, Female Sockets ; 8.50mm Pitch High-Reliability Connector - Kona

Download Datasheet Request Sample


All prices are in USD
SPQ: 15		 Quantity Unit Price Ext Price Packaging
15 $81.6 $1224 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeKona
GenderMale
OrientationHorizontal
Number Of Rows1
Number Of Contacts4
Current Rating60A max per contact
Environmental Ratings-65°C to +150°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Fixing with Board/Front Panel Mount
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight18.9g
Dimensions50.00 x 17.50 x 14.55
Above Board Height10.90mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

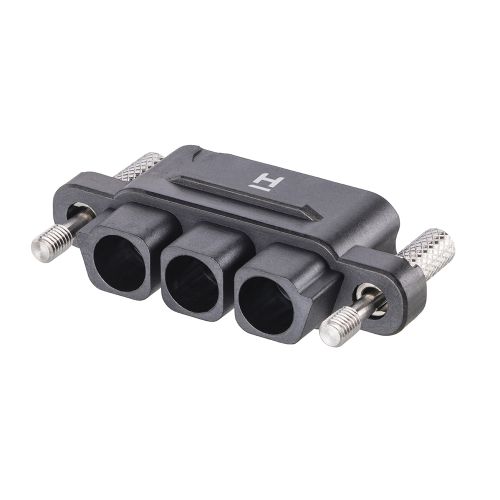

KA1-2010398F1

 View Details
Image 1 Image 1

KA1-2020398F1

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

KA1-3010498M1

 View Details
Image 1 Image 1

KA1-MV10405M1

 View Details
Image 1 Image 1

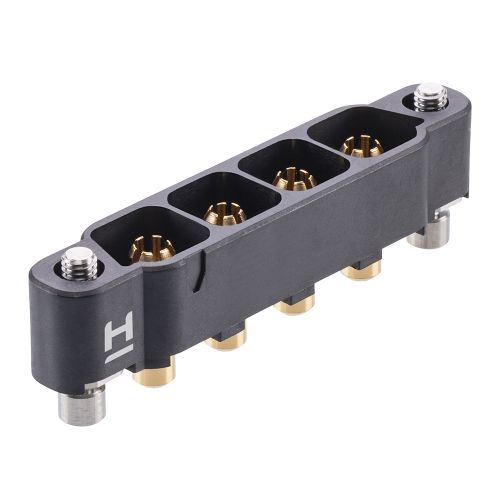

KA1-MV10405M2

 View Details
Image 1 Image 1

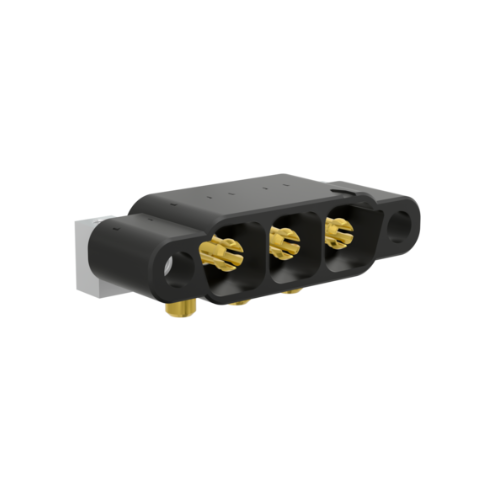

KA1-MH10305M3

 View Details
Image 1 Image 1

KA1-MH10405M4

 View Details
