M20-1070600

2.54mm (0.1") Pitch DIL Female Crimp Housing, 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 1000		 Quantity Unit Price Ext Price Packaging
500 $0.235 $117.5 Bulk/Loose
1000 $0.227 $227 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Number Of Rows2
Number Of Contacts12
Current Rating3A per contact
Environmental Ratings-25°C to +85°C
Housing MaterialPPE+PS
Flammability RatingUL94V-1
Weight0.6g
Dimensions15.24 x 5.10 x 14.00
End StackableNo
Mating Pin Size0.64mm square
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

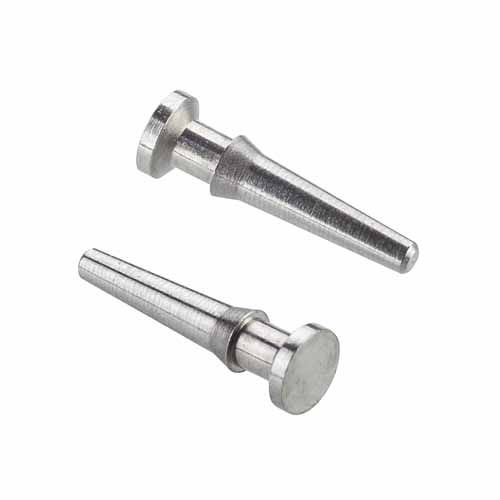

M20-003

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-1160042

 View Details
Image 1 Image 1

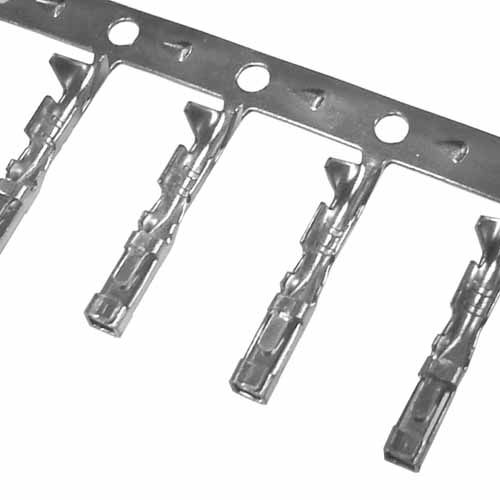

M20-1160046

 View Details
Image 1 Image 1

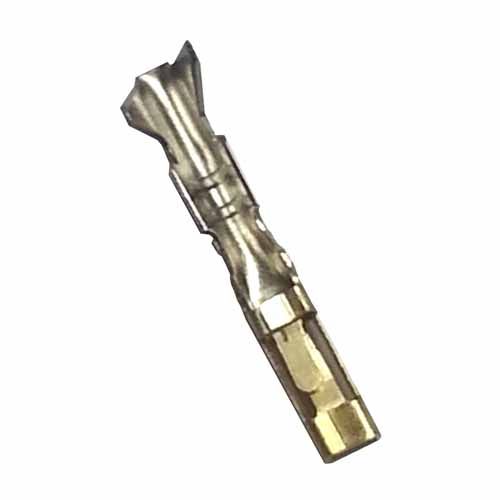

M20-1180042

 View Details
Image 1 Image 1

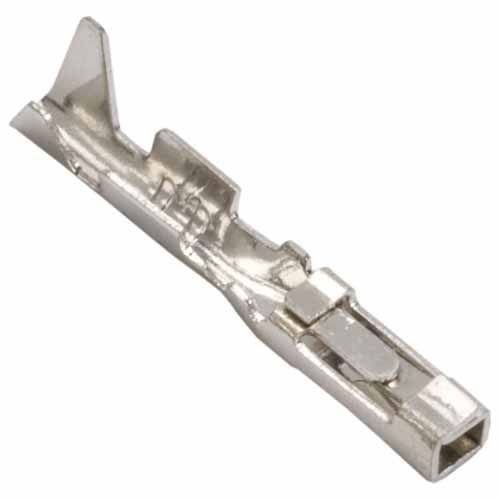

M20-1180046

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-8750642

 View Details
Image 1 Image 1

M20-8760642

 View Details
Image 1 Image 1

M20-8760646

 View Details
Image 1 Image 1

M20-9740642

 View Details
Image 1 Image 1

M20-9740646

 View Details
Image 1 Image 1

M20-9760642

 View Details
Image 1 Image 1

M20-9950645

 View Details
Image 1 Image 1

M20-9980645

 View Details
Image 1 Image 1

M20-9980646

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-1060600

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M20-1061200

View Details
