Product Images

M20-7890246

2.54mm (0.1") Pitch SIL Horizontal Throughboard Socket Assembly, tin, 2 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 115
Quantity Unit Price Ext Price Packaging
1035 $0.464 $480.24 Tube
2530 $0.407 $1029.71 Tube
10005 $0.405 $4052.025 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts2
Current Rating3A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 6T
Flammability RatingUL94V-0
Weight0.207g
Dimensions5.08 x 8.12 x 6.30
Above Board Height3.30mm
End StackableNo
Mating Pin Size0.64mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M20-7820246

View Details

M20-7860346

View Details

M20-7880246

View Details

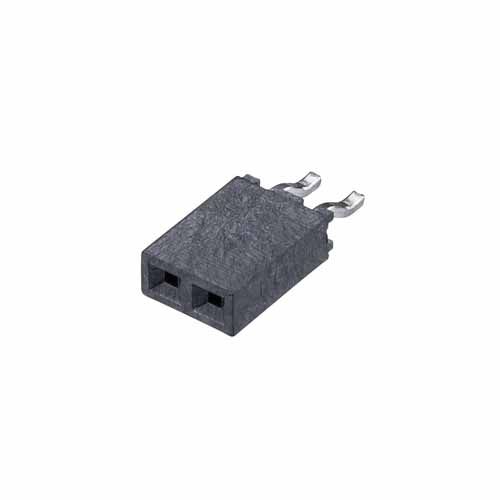

M20-7910242R
