M20-7890842

2.54mm (0.1") Pitch SIL Horizontal Throughboard Socket Assembly, selective gold + tin, 8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 29		 Quantity Unit Price Ext Price Packaging
2523 $0.829 $2091.567 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeINDESS
Pitch2.54mm (0.1")
GenderFemale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts8
Current Rating3A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 6T
Flammability RatingUL94V-0
Weight0.822g
Dimensions20.32 x 8.12 x 6.30
Above Board Height3.30mm
End StackableNo
Mating Pin Size0.64mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-8770842

 View Details
Image 1 Image 1

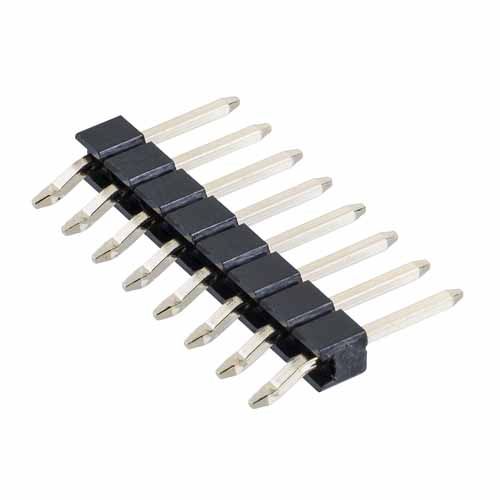

M20-8890845

 View Details
Image 1 Image 1

M20-8900805

 View Details
Image 1 Image 1

M20-9750846

 View Details
Image 1 Image 1

M20-9770842

 View Details
Image 1 Image 1

M20-9960845

 View Details
Image 1 Image 1

M20-9990845

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M20-7890846

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M20-7820842

View Details

M20-7861546

View Details

M20-7880442

View Details

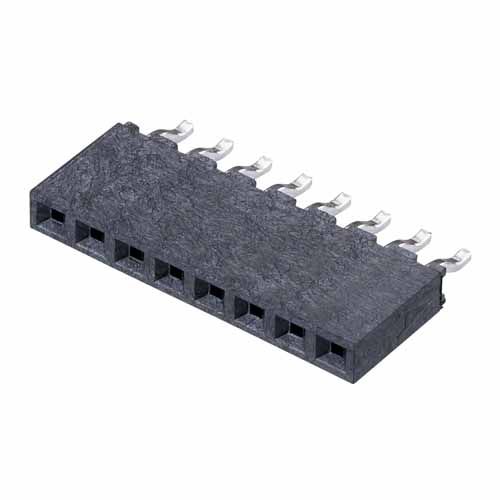

M20-7910842R
