M300-FC10605F2-0150L

M300 DIL Cable Assembly, Female Single-Ended with Hex Socket jackscrews with Hex Socket jackscrews, white 18 AWG cable, 150mm long, 3+3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
100 $18.95 $1895 Bulk/Loose
200 $18.45 $3690 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeM300
Pitch3.00mm (0.118")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size18 AWG
Number Of Rows2
Number Of Contacts6
Current Rating10A max per contact simultaneous
Environmental Ratings-65°C to +175°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight13.039g
Dimensions151.00 x 21.30 x 8.00
End StackableNo
Mating Pin SizeØ1mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z300-902

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-0010045

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

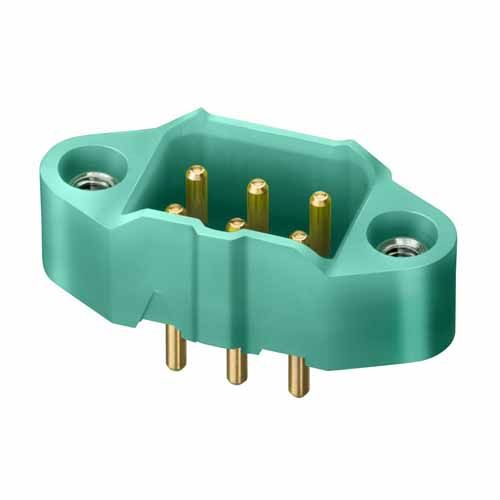

M300-MV30645M1

 View Details
Image 1 Image 1

M300-3240696M1

 View Details
Image 1 Image 1

M300-3240696M2

 View Details
Image 1 Image 1

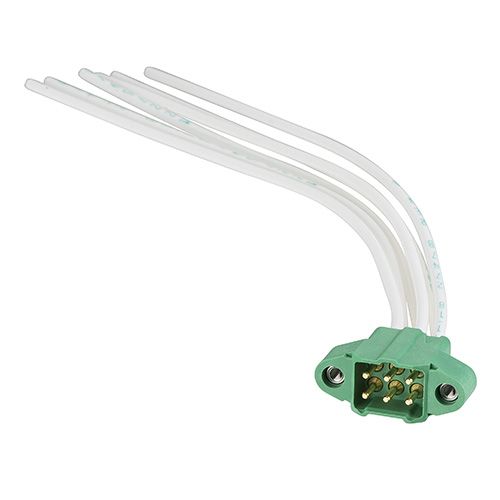

M300-MC10605M1-0150L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-FC10605F2-0450L

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M300-2240696F2

View Details

M300-FC20605F2-0150L

View Details

M300-FC30605F2-0150L

View Details
