M300-0010045

M300 Female Crimp Contact, suitable for 18 and 20 AWG cable, up to 10A per contact

Download Datasheet Request Sample
In-Stock: 3561
Factory Lead Time (wks): 18
All prices are in USD
SPQ: 100		 Quantity Unit Price Ext Price Packaging
500 $1 $500 Bulk/Loose
1000 $0.947 $947 Bulk/Loose
2500 $0.873 $2182.5 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeM300
Pitch3.00mm (0.118")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size18-20 AWG
Current Rating10A max per contact simultaneous
Environmental Ratings-65°C to +175°C
Termination FinishGold
Weight0.159g
Dimensions9.35 x Ø2.33
Mating Pin SizeØ1mm
Pcb MountingCable (Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-058

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z300-902

 View Details

Use with Housings

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-2240696F2

 View Details
Image 1 Image 1

M300-2241096F2

 View Details
Image 1 Image 1

M300-2250396F2

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-1010045

 View Details
Image 1 Image 1

M300-1020045

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-0020045

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-328

View Details

M80-329

View Details

M300-1010045

View Details

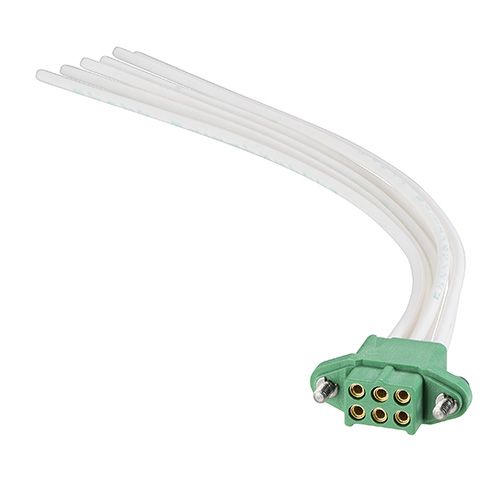

M300-FC10605F2-0150L
