M300-FV10345F2

M300 SIL Female Throughboard Connector, with Hex Socket jackscrews, 3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 18
All prices are in USD
SPQ: 12		 Quantity Unit Price Ext Price Packaging
108 $7.93 $856.44 Tube
504 $7.17 $3613.68 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeM300
Pitch3.00mm (0.118")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts3
Current Rating10A max per contact simultaneous
Environmental Ratings-65°C to +175°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination FinishGold
Housing MaterialPolyamide (Nylon) 4T
Flammability RatingUL94V-0
Weight1.429g
Dimensions21.30 x 5.30 x 10.20
Above Board Height7.00mm
End StackableNo
Mating Pin SizeØ1mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M300-MC60305M1-0150L

 View Details
Image 1 Image 1

M300-MC60305M1-0300L

 View Details
Image 1 Image 1

M300-MC60305M1-0450L

 View Details
Image 1 Image 1

M300-MC70305M1-0150L

 View Details
Image 1 Image 1

M300-MC70305M1-0300L

 View Details
Image 1 Image 1

M300-MC70305M1-0450L

 View Details
Image 1 Image 1

M300-MV10345M1

 View Details
Image 1 Image 1

M300-3250396M1

 View Details
Image 1 Image 1

M300-3250396M2

 View Details
Image 1 Image 1

M300-MC50305M1-0150L

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

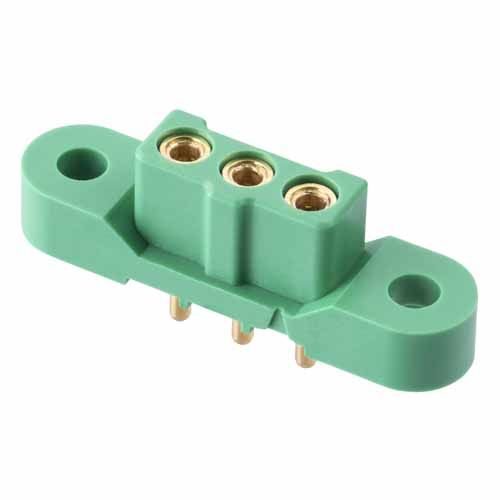

M300-FV1034500

 View Details
