M50-3031042

1.27mm (0.05") Pitch SIL Vertical Throughboard Socket Assembly, gold, 10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 44		 Quantity Unit Price Ext Price Packaging
528 $0.96 $506.88 Tube
1012 $0.903 $913.836 Tube
2508 $0.9 $2257.2 Tube
5016 $0.83 $4163.28 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts10
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 6T
Flammability RatingUL94V-0
Weight0.211g
Dimensions11.80 x 1.80 x 6.80
Above Board Height4.40mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3531042

 View Details
Image 1 Image 1

M50-3631042

 View Details
Image 1 Image 1

M50-3931042

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3141045

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

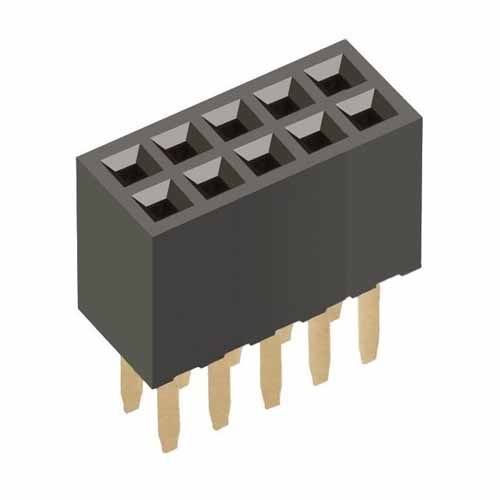

M50-3000545

View Details

M50-3131045

View Details
