M50-3531042

1.27mm (0.05") Pitch SIL Vertical Throughboard Pin Header, selective gold + tin, 10 contacts

Download Datasheet Request Sample
In-Stock: 282
Factory Lead Time (wks): 16
All prices are in USD
SPQ: 500		 Quantity Unit Price Ext Price Packaging
500 $0.214 $107 Bulk/Loose
1000 $0.201 $201 Bulk/Loose
2500 $0.174 $435 Bulk/Loose
10000 $0.164 $1640 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts10
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.119g
Dimensions12.70 x 2.10 x 6.30
Above Board Height4.00mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

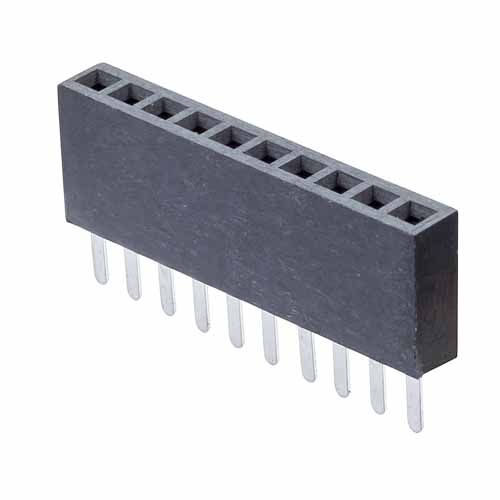

M50-3031042

 View Details
Image 1 Image 1

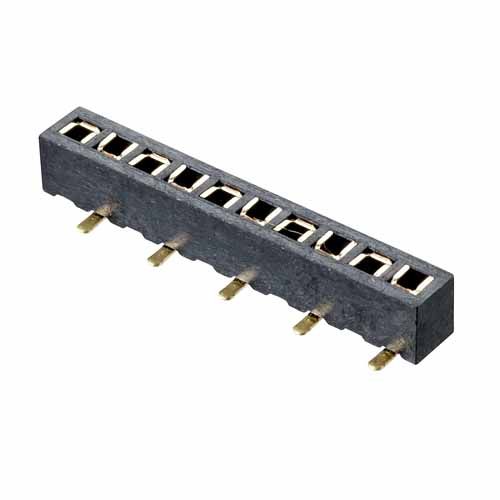

M50-3131045

 View Details
Image 1 Image 1

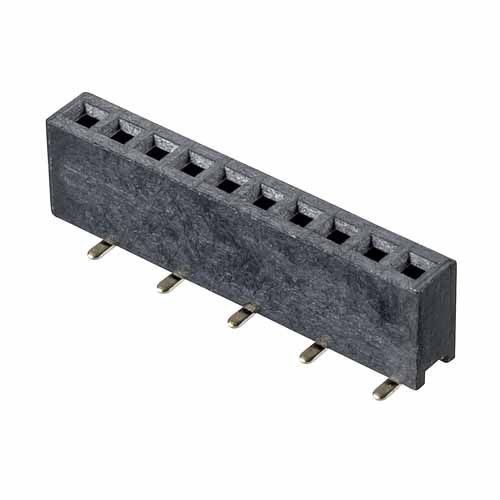

M50-3141045

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

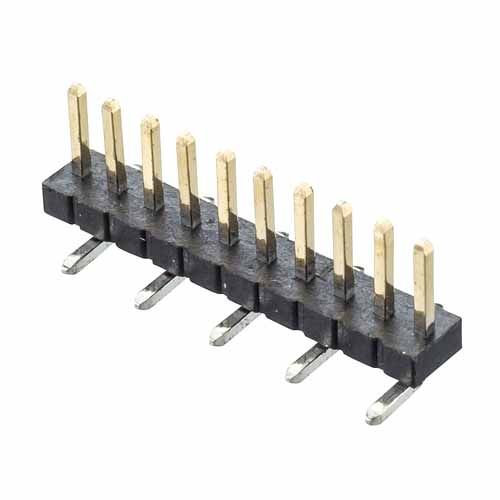

M50-3631042

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

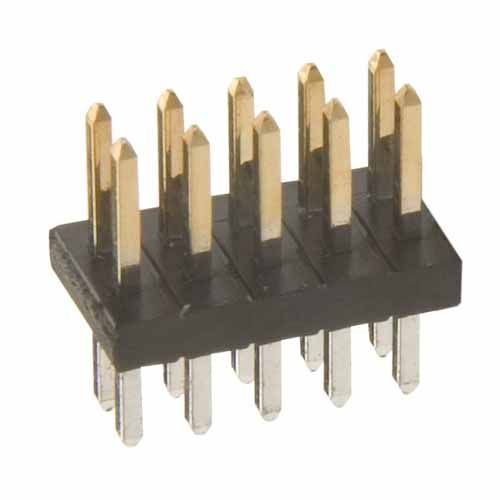

M50-3500542

View Details

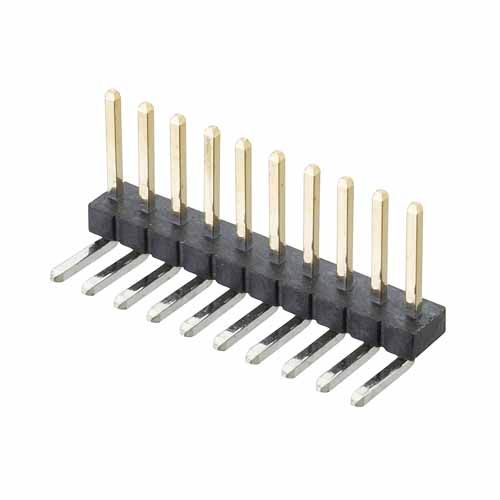

M50-3931042
