M50-3200845

1.27mm (0.05") Pitch DIL Horizontal Throughboard Socket Assembly, gold, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 54		 Quantity Unit Price Ext Price Packaging
540 $1.75 $945 Tube
1026 $1.65 $1692.9 Tube
5022 $1.61 $8085.42 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderFemale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts16
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination FinishGold
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.371g
Dimensions10.56 x 5.23 x 5.85
Above Board Height3.45mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

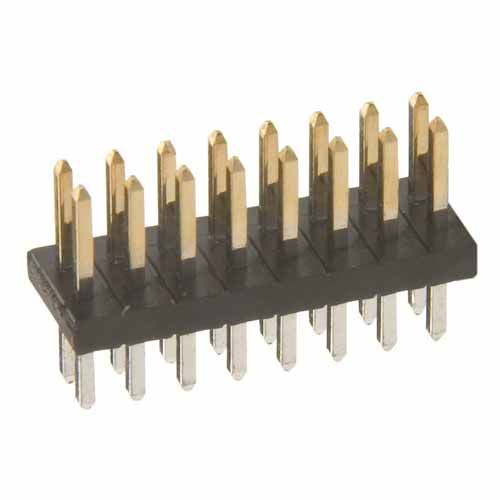

M50-3500842

 View Details
Image 1 Image 1

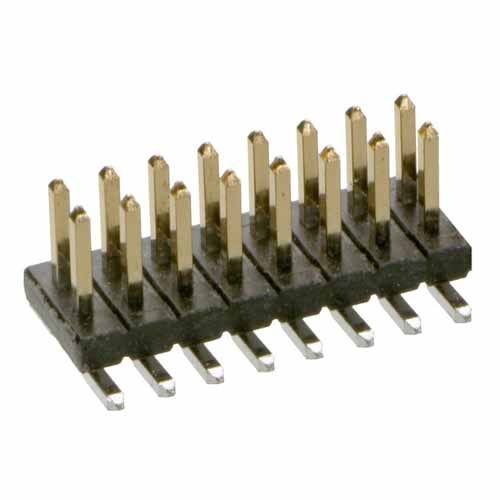

M50-3600842

 View Details
Image 1 Image 1

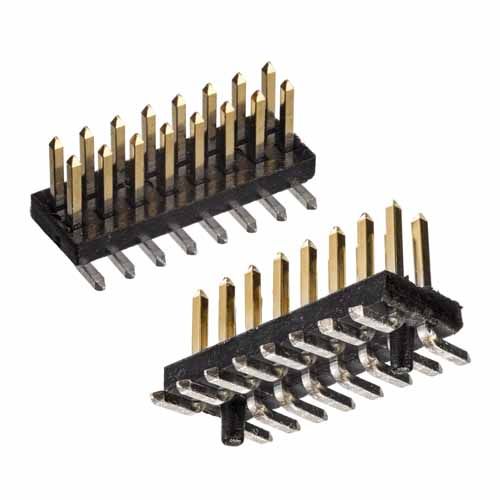

M50-3610842

 View Details
Image 1 Image 1

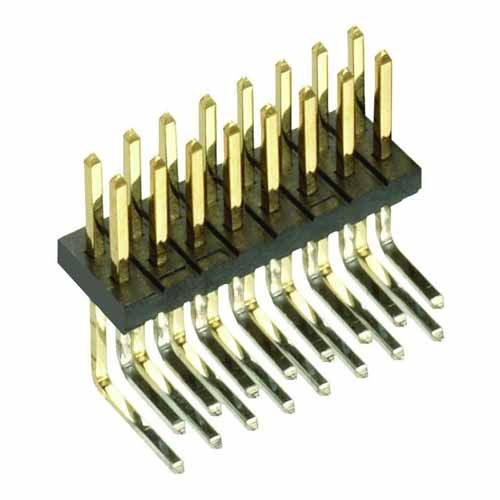

M50-3900842

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M55-6101642R

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

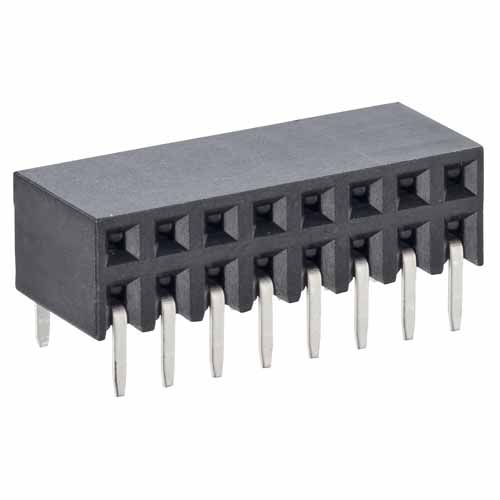

M20-7880842

View Details

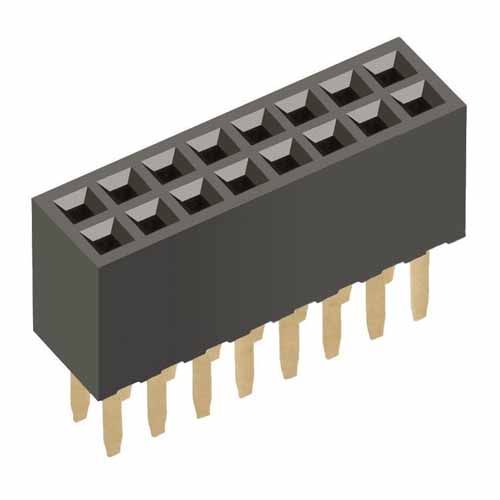

M50-3000845

View Details

M50-3300542

View Details

M50-9010542

View Details
