M50-3551042

1.27mm (0.05") Pitch DIL Vertical Male Throughboard Ejector Header, selective gold + tin, 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 21
Quantity Unit Price Ext Price Packaging
1008 $1.63 $1643.04 Tube
5019 $1.58 $7930.02 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts20
Current Rating1.75A per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialLCP
Flammability RatingUL94V-0
Weight1.461g
Dimensions27.18 x 6.67 x 14.02
Above Board Height11.30mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-3501042

View Details

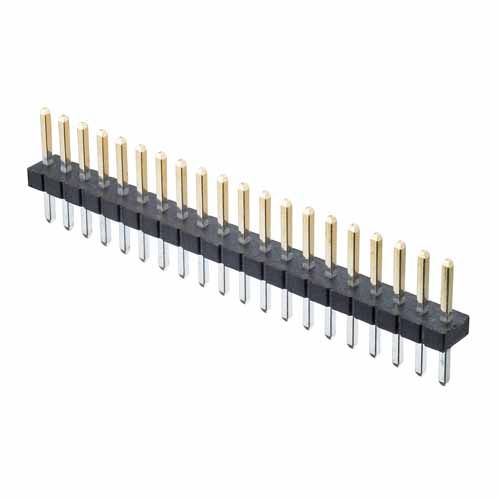

M50-3532042

View Details

M50-3801042

View Details

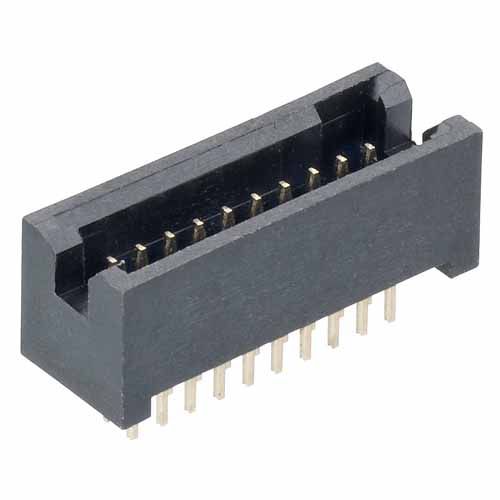

M50-4701045
