M50-3301042

1.27mm (0.05") Pitch DIL Female IDC Ribbon Cable Connector, selective gold + tin, 10+10 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 34		 Quantity Unit Price Ext Price Packaging
1020 $1.855 $1892.1 Bulk/Loose
2516 $1.819 $4576.604 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderFemale
OrientationAngled
Connection TypeCable (Ribbon IDC)
Number Of Rows2
Number Of Contacts20
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Termination Finish100% Tin over Nickel
Housing MaterialPBT
Flammability RatingUL94V-0
Weight0.415g
Dimensions16.90 x 4.05 x 5.10
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingCable (Ribbon IDC)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

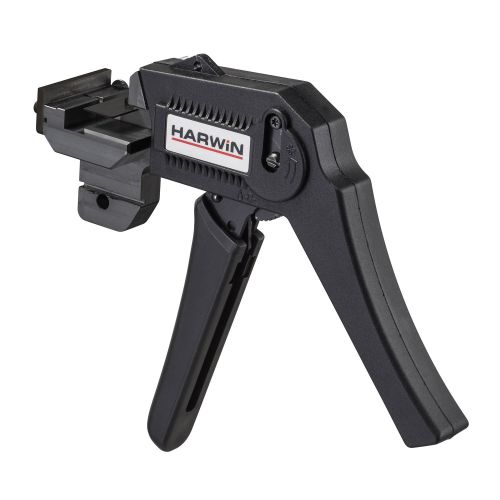

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z50-020

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3501042

 View Details
Image 1 Image 1

M50-3551042

 View Details
Image 1 Image 1

M50-3601042

 View Details
Image 1 Image 1

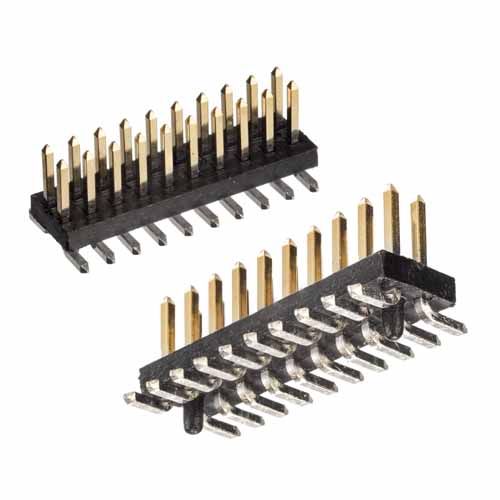

M50-3611042

 View Details
Image 1 Image 1

M50-3651042R

 View Details
Image 1 Image 1

M50-3801042

 View Details
Image 1 Image 1

M50-3901042

 View Details
Image 1 Image 1

M50-9011042

 View Details
Image 1 Image 1

M50-9021042

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-9101042

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

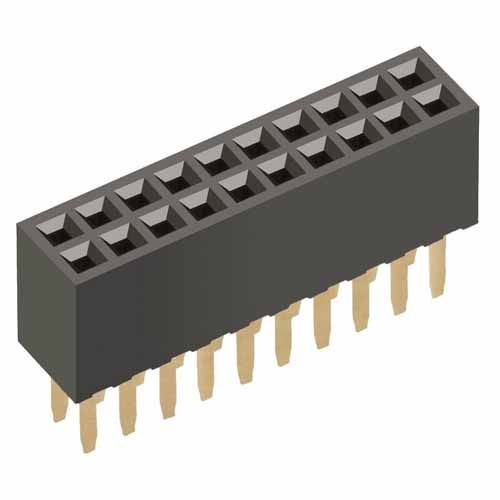

M50-3001045
