Product Images

M50-3600342

1.27mm (0.05") Pitch DIL Vertical SMT Pin Header, selective gold + tin, 3+3 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16 All prices are in USD SPQ: 2000	Quantity	Unit Price	Ext Price	Packaging
	10000	$0.659	$6590	Bulk/Loose

Product Attributes

ManufacturerHarwin

PackageBulk/Loose

Product FamilyBBi

Product StatusActive

RangeARCHER

Pitch1.27mm (0.05")

GenderMale

OrientationVertical

Connection TypeSurface Mount (SMT)

Number Of Rows2

Number Of Contacts6

Current Rating1A per contact

Environmental Ratings-40°C to +105°C

Soldering DataMax Solder Temperature: 260°C for 10 seconds

Termination Finish100% Tin over Nickel

Housing MaterialPolyamide (Nylon) 6T

Flammability RatingUL94V-0

Weight0.073g

Dimensions3.81 x 5.50 x 4.68

Above Board Height4.68mm

End StackableNo

Mating Pin Size0.4mm square

Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

M50-1900005

View Details

M50-1920005

View Details

M50-1930005

View Details

M50-2000005

View Details

M50-2020005

View Details

M50-2030005

View Details

M50-3000345

View Details

M50-3100345

View Details

M50-3120345

View Details

M50-3150342

View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

M50-3600342R

View Details

Documents & Media

Component Spec

Component Spec

Download

Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download

Web Address

Web Address

Download

FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-3500542

View Details

M50-3630642

View Details

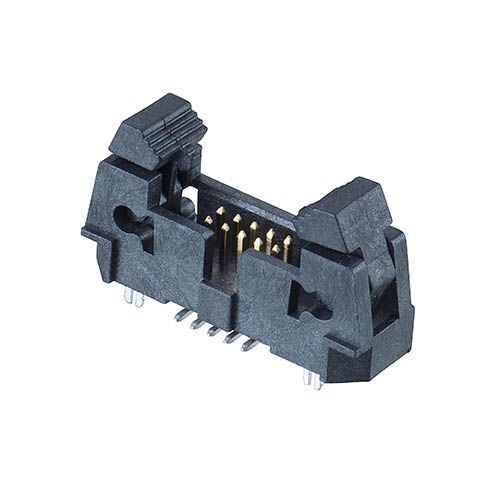

M50-3650542R

View Details

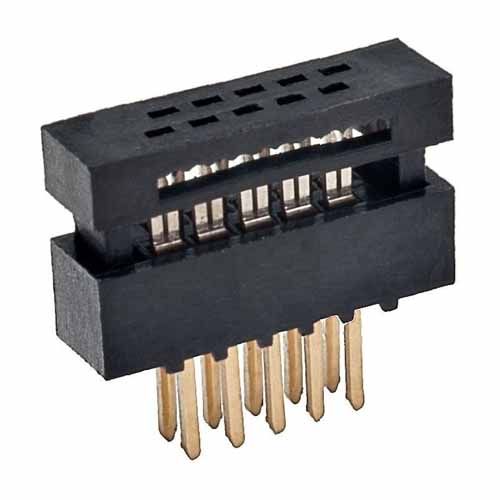

M50-3800542
