M50-3630642

1.27mm (0.05") Pitch SIL Vertical SMT Pin Header, selective gold + tin, 6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 76		 Quantity Unit Price Ext Price Packaging
532 $0.291 $154.812 Tube
1064 $0.277 $294.728 Tube
2508 $0.241 $604.428 Tube
10032 $0.228 $2287.296 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows1
Number Of Contacts6
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.075g
Dimensions7.62 x 5.00 x 4.50
Above Board Height4.50mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

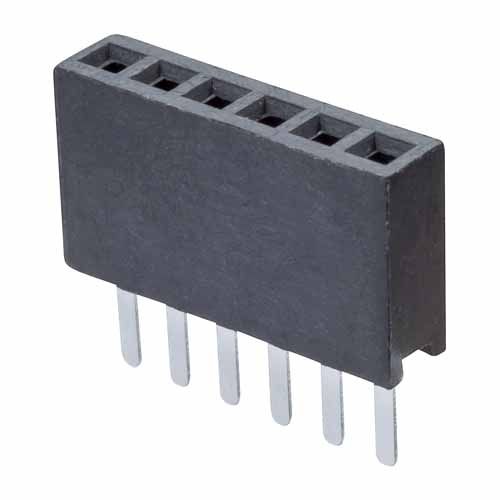

M50-3030642

 View Details
Image 1 Image 1

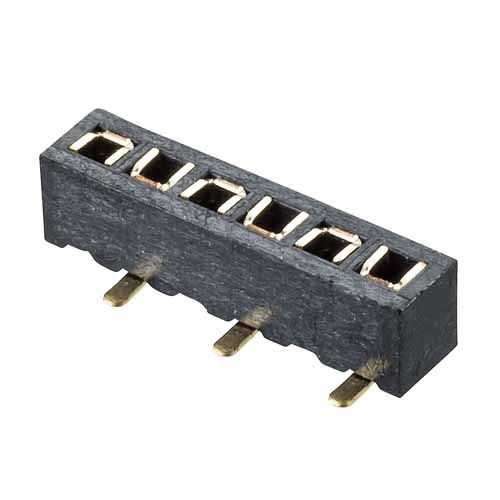

M50-3130645

 View Details
Image 1 Image 1

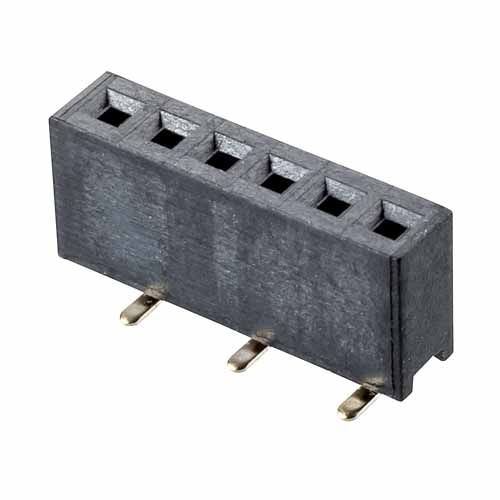

M50-3140645

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

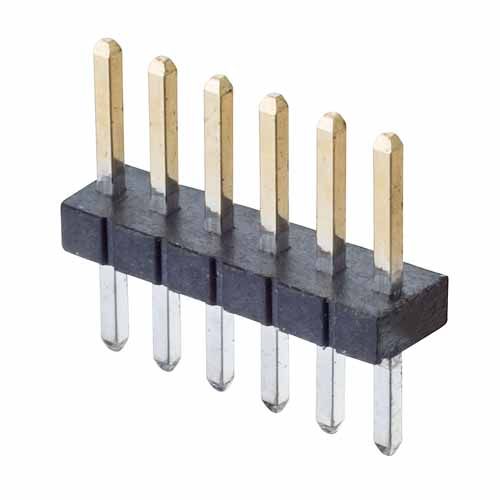

M50-3530642

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M50-3600342

View Details

M50-3630642R

View Details

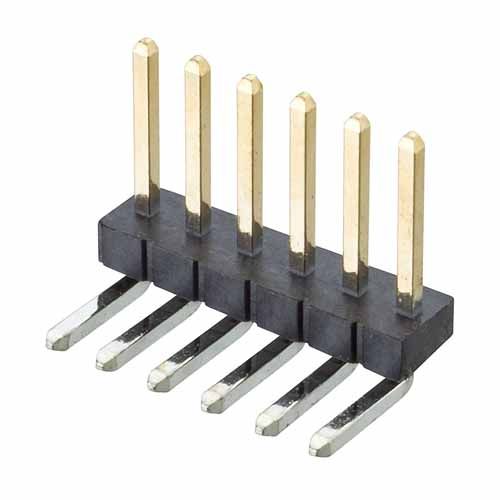

M50-3930642

View Details
