M50-3630842

1.27mm (0.05") Pitch SIL Vertical SMT Pin Header, selective gold + tin, 8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 57		 Quantity Unit Price Ext Price Packaging
513 $0.367 $188.271 Tube
1026 $0.334 $342.684 Tube
2508 $0.313 $785.004 Tube
10032 $0.305 $3059.76 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows1
Number Of Contacts8
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.1g
Dimensions10.16 x 5.00 x 4.50
Above Board Height4.50mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3030842

 View Details
Image 1 Image 1

M50-3130845

 View Details
Image 1 Image 1

M50-3140845

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3530842

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

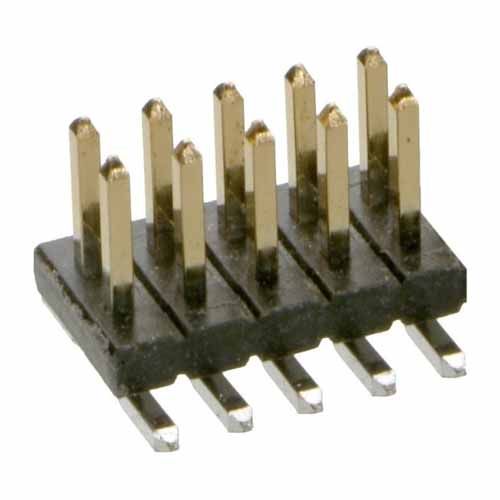

M50-3600542

View Details

M50-3630842R

View Details

M50-3930842

View Details
