M50-3930842

1.27mm (0.05") Pitch SIL Horizontal Throughboard Pin Header, selective gold + tin, 8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 500		 Quantity Unit Price Ext Price Packaging
500 $0.302 $151 Bulk/Loose
1000 $0.284 $284 Bulk/Loose
2500 $0.246 $615 Bulk/Loose
10000 $0.233 $2330 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows1
Number Of Contacts8
Current Rating1A per contact
Environmental Ratings-40°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialPolyamide (Nylon) 9T
Flammability RatingUL94V-0
Weight0.123g
Dimensions10.16 x 4.50 x 5.70
Above Board Height2.10mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

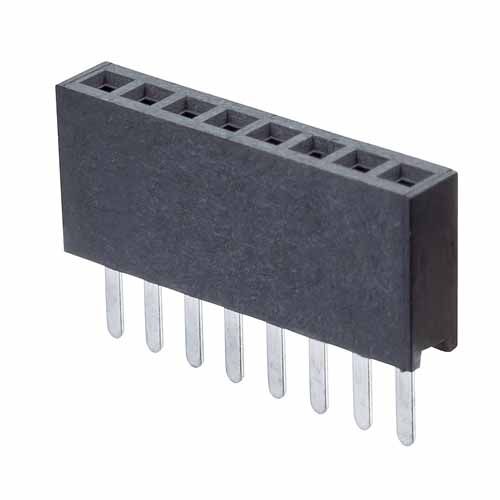

M50-3030842

 View Details
Image 1 Image 1

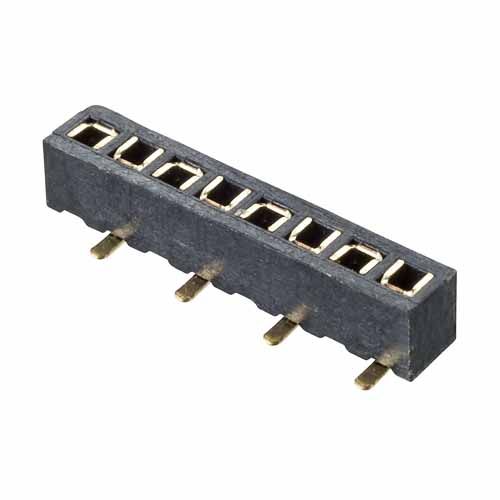

M50-3130845

 View Details
Image 1 Image 1

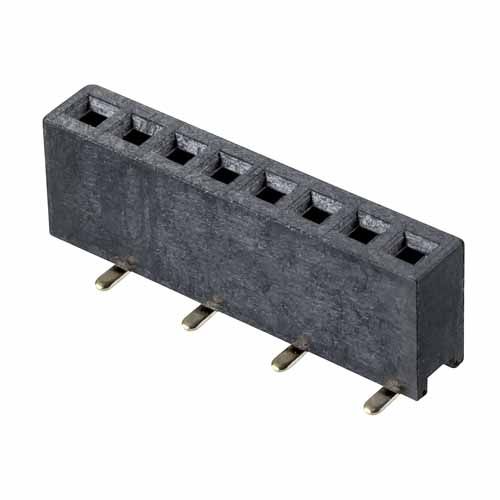

M50-3140845

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

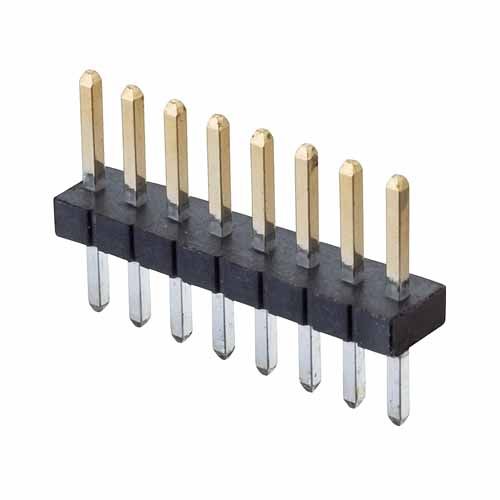

M50-3530842

 View Details
