M50-3802542

1.27mm (0.05") Pitch DIL Male IDC Ribbon Cable Connector (DIP Transition Connector), selective gold, 25+25 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 16		 Quantity Unit Price Ext Price Packaging
1520 $3.15 $4788 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationAngled
Connection TypeCable (Ribbon IDC)
Number Of Rows2
Number Of Contacts50
Current Rating0.5A per contact
Environmental Ratings-40°C to +105°C
Termination Finish100% Tin over Nickel
Housing MaterialPBT
Flammability RatingUL94V-0
Weight1.28g
Dimensions35.95 x 3.00 x 8.20
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingCable (Ribbon IDC)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z50-030

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

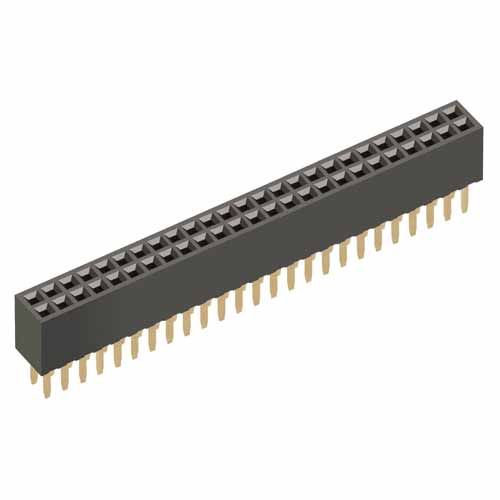

M50-3002545

 View Details
Image 1 Image 1

M50-3102545

 View Details
Image 1 Image 1

M50-3112542

 View Details
Image 1 Image 1

M50-3122545

 View Details
Image 1 Image 1

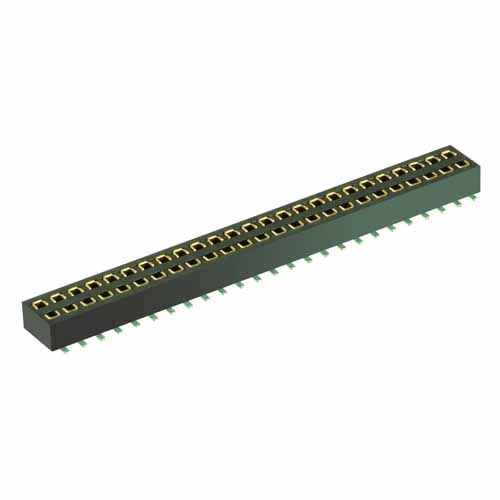

M50-3152542

 View Details
Image 1 Image 1

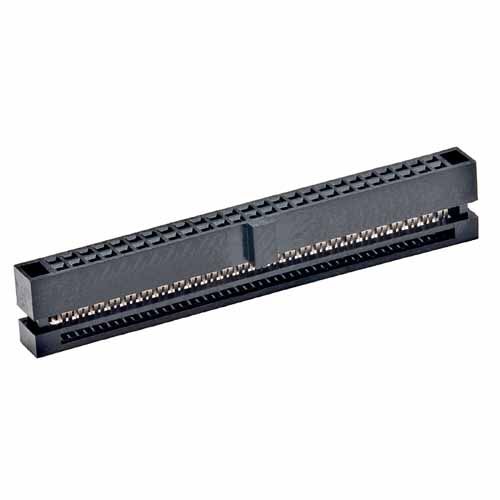

M50-3302542

 View Details
Image 1 Image 1

M50-9012542

 View Details
Image 1 Image 1

M50-9022542

 View Details
Image 1 Image 1

M50-9102542

 View Details
Image 1 Image 1

M50-9112542

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-9012542

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M55-7005042R

View Details

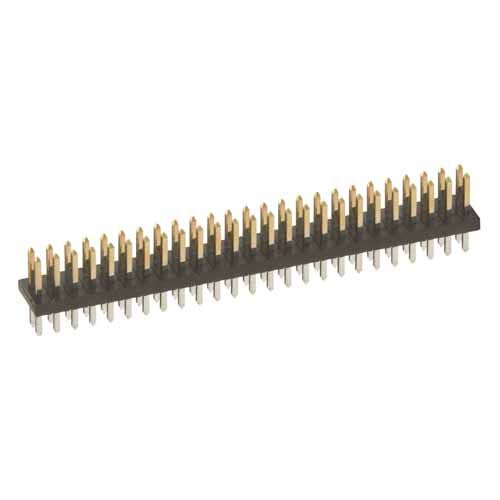

M50-3502542

View Details

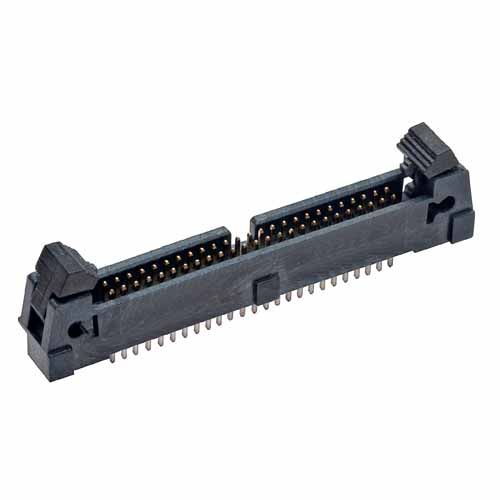

M50-3552542

View Details

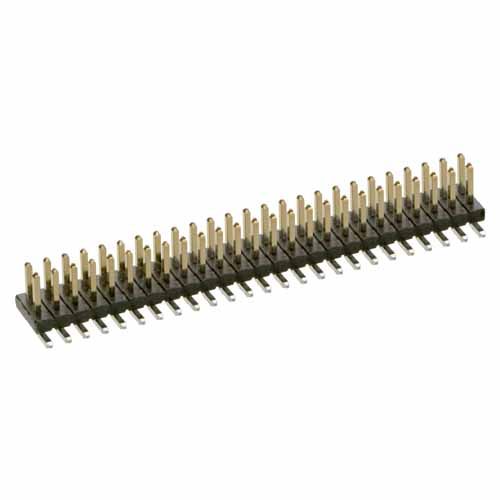

M50-3602542

View Details
