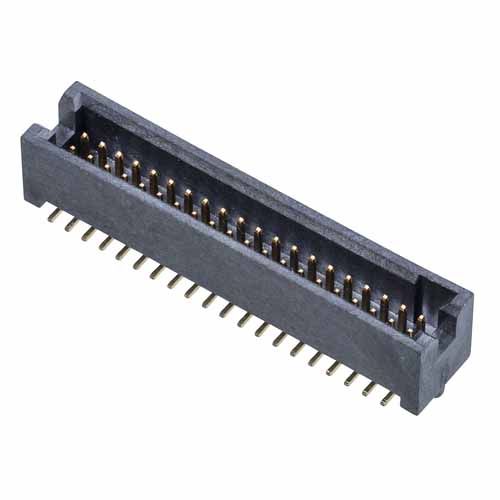

M50-3652542R

1.27mm (0.05") Pitch DIL Vertical Male SMT Ejector Header, selective gold + tin, pick & place (Tape & Reel packing), 25+25 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 16
All prices are in USD
SPQ: 250		 Quantity Unit Price Ext Price Packaging
2000 $2.74 $5480 Tape and Reel

Product Attributes

ManufacturerHarwin
PackageTape and Reel
Product FamilyBBi
Product StatusActive
RangeARCHER
Pitch1.27mm (0.05")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts50
Current Rating1.75A per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Termination Finish100% Tin over Nickel
Housing MaterialLCP
Flammability RatingUL94V-0
Weight2.571g
Dimensions46.23 x 6.67 x 12.82
Above Board Height11.55mm
End StackableNo
Mating Pin Size0.4mm square
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3002545

 View Details
Image 1 Image 1

M50-3102545

 View Details
Image 1 Image 1

M50-3112542

 View Details
Image 1 Image 1

M50-3122545

 View Details
Image 1 Image 1

M50-3152542

 View Details
Image 1 Image 1

M50-3302542

 View Details
Image 1 Image 1

M50-9012542

 View Details
Image 1 Image 1

M50-9022542

 View Details
Image 1 Image 1

M50-9102542

 View Details
Image 1 Image 1

M50-9112542

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-3552542

 View Details
