M55-4000842-0300A

8 Pos. Kontrol Female SIL IDC Cable Assembly 300mm Double-end

Download Datasheet Request Sample

Factory Lead Time (wks): 14
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
180 $11.18 $2012.4 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyBBi
Product StatusActive
RangeKONTROL
Pitch1.27mm (0.05")
GenderFemale
OrientationStraight
Connection TypeCable Assembly
Wire Size26 AWG
Number Of Rows1
Number Of Contacts8
Current Rating1.2A max per contact
Environmental Ratings-20°C to +105°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Latching StyleBuilt-in Latches
Termination Finish100% Tin over Nickel
Housing MaterialPPA
Flammability RatingUL94V-0
Weight8.188g
Dimensions328.00 x 20.04 x 5.00
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

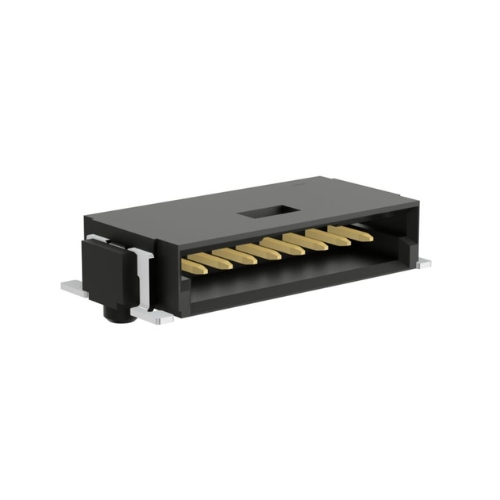

M55-3100842R

 View Details
Image 1 Image 1

M55-3000842R

 View Details
Image 1 Image 1

M55-5000842-0150A

 View Details
Image 1 Image 1

M55-5000842-0300A

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M50-9111042

 View Details
Image 1 Image 1

M55-8001242-0300A

 View Details
Image 1 Image 1

M55-8201242

 View Details
Image 1 Image 1

M55-2100842R

 View Details
Image 1 Image 1

M55-4000842-0150A

 View Details
Image 1 Image 1

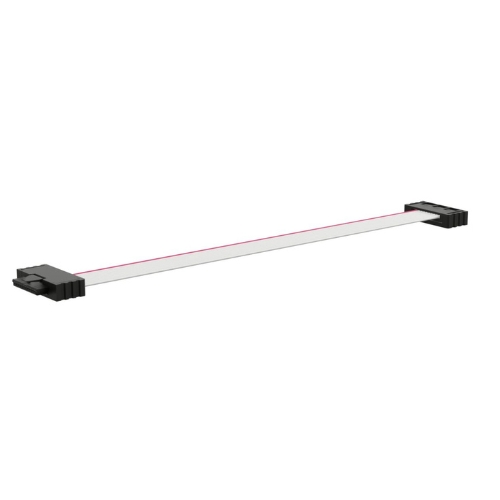

M55-4001042-0300A

 View Details
