Home - Products - Connectors, Interconnects - Rectangular Connectors - Rectangular Connector Housings - M80-263F906-00-00
Product Images

M80-263F906-00-00

Datamate Mix-Tek Female Cable Housing, Reverse Fix with 5mm front panel mount studs, cavities for 6 x Power or Coax contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 21
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
40 $13.986 $559.44 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Number Of Rows1
Current RatingDependent on assembled contacts
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Front Panel Mount Stud (Reverse Fix)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.427g
Dimensions34.00 x 5.50 x 10.70
End StackableNo
Pcb MountingCable (Solder + Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

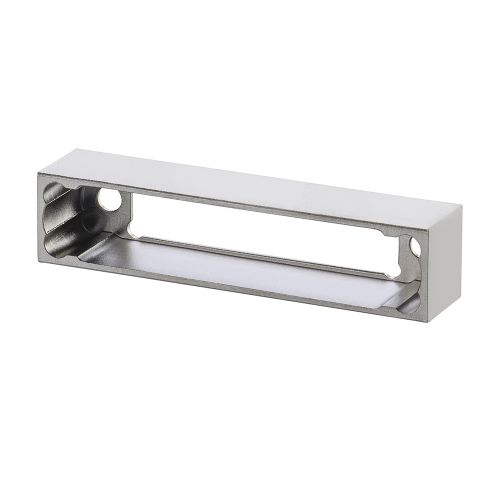

M80-9062402

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details
Image 1 Image 1

M80-2430000B

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-305

 View Details
Image 1 Image 1

M80-307

 View Details
Image 1 Image 1

M80-308

 View Details
Image 1 Image 1

M80-309

 View Details
Image 1 Image 1

M80-310

 View Details
Image 1 Image 1

M80-325

 View Details
Image 1 Image 1

M80-326

 View Details
Image 1 Image 1

M80-327

 View Details
Image 1 Image 1

M80-328

 View Details
Image 1 Image 1

M80-329

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-273MA06-00-00

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

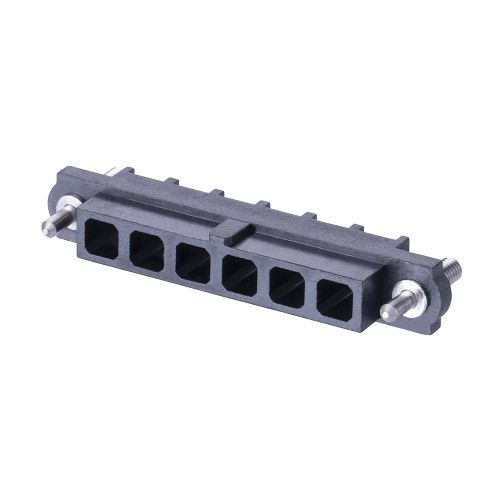

M80-263F306-00-00

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-263F106-00-00

View Details

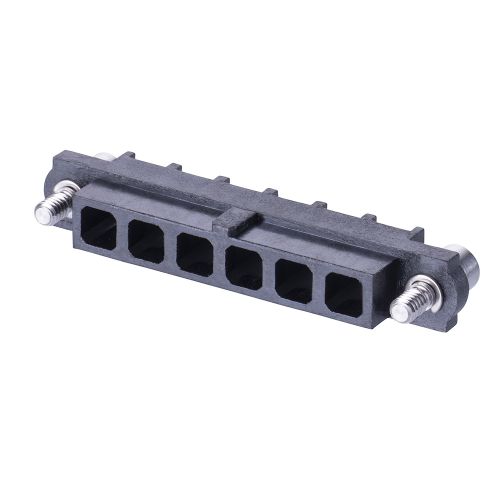

M80-263F206-00-00

View Details

M80-4000000F1-06-325-00-000

View Details

M80-4000000F1-06-PF5-00-000

View Details
