M80-273MA03-00-00

Datamate Mix-Tek Male Cable Housing, Reverse Fix slotted floating jackscrews, cavities for 3 x Power or Coax contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 21
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
40 $12.065 $482.6 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Number Of Rows1
Current RatingDependent on assembled contacts
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Slotted Head (Reverse Fix)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.424g
Dimensions22.00 x 6.00 x 8.55
End StackableNo
Pcb MountingCable (Solder + Crimp)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-315

 View Details
Image 1 Image 1

M80-317

 View Details
Image 1 Image 1

M80-318

 View Details
Image 1 Image 1

M80-319

 View Details
Image 1 Image 1

M80-335

 View Details
Image 1 Image 1

M80-336

 View Details
Image 1 Image 1

M80-337

 View Details
Image 1 Image 1

M80-338

 View Details
Image 1 Image 1

M80-339

 View Details
Image 1 Image 1

M80-PM5

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

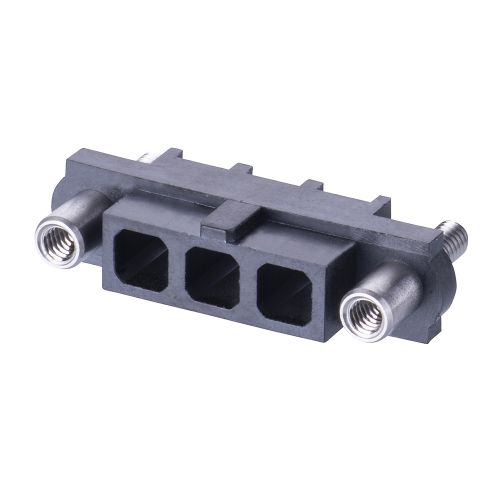

M80-263F903-00-00

 View Details
Image 1 Image 1

M80-4000000F8-03-321-00-000

 View Details
Image 1 Image 1

M80-4000000F9-03-321-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-273M103-00-00

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

M80-5000000MA-03-337-00-000

View Details

M80-273MC03-00-00

View Details

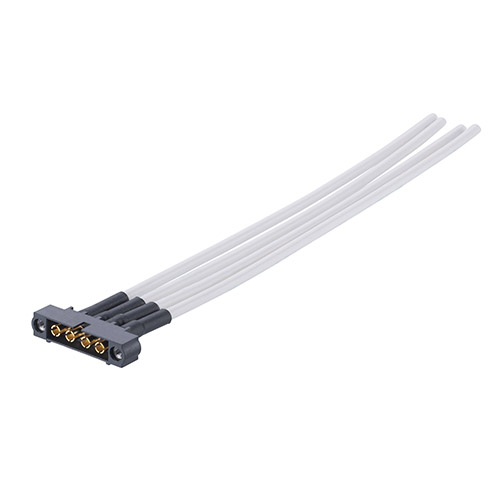

M80-MC335M1-04-0150L

View Details
