M80-PM5

Datamate Mix-Tek Male Straight Solder High Power Contact, 10 AWG Cable

Download Datasheet Request Sample

Factory Lead Time (wks): 19
All prices are in USD
SPQ: 10
Quantity Unit Price Ext Price Packaging
500 $5.775 $2887.5 Bulk/Loose
1000 $5.77 $5770 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationStraight
Connection TypeCable (Solder)
Wire Size10 AWG
Current Rating40A max per contact
Environmental Ratings-55°C to +125°C
Termination FinishGold
Weight0.392g
Dimensions13.30 x 2.95 square
Pcb MountingCable (Solder)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

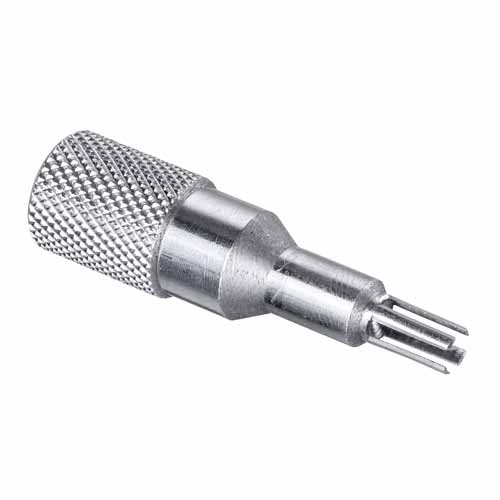

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

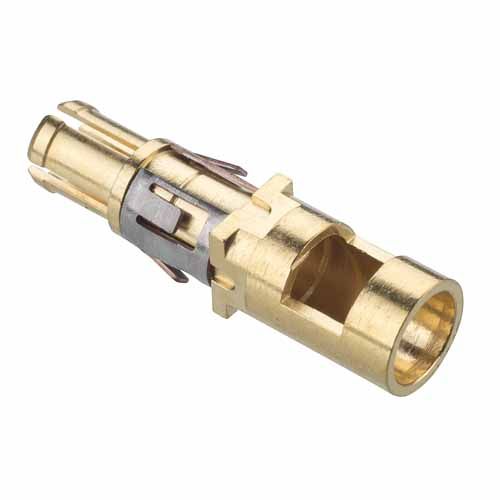

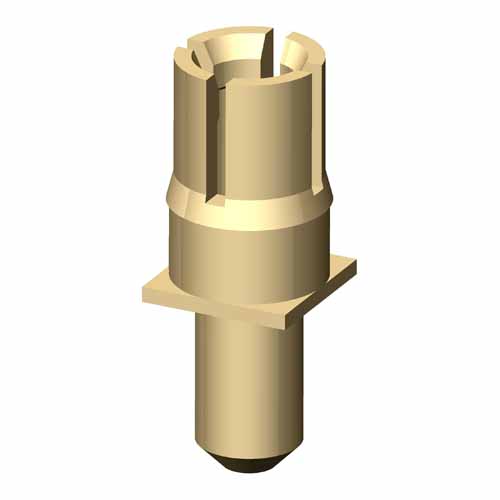

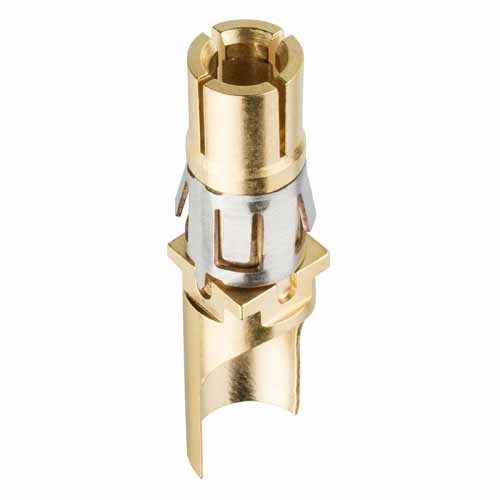

Use with Mating Products

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Download
Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

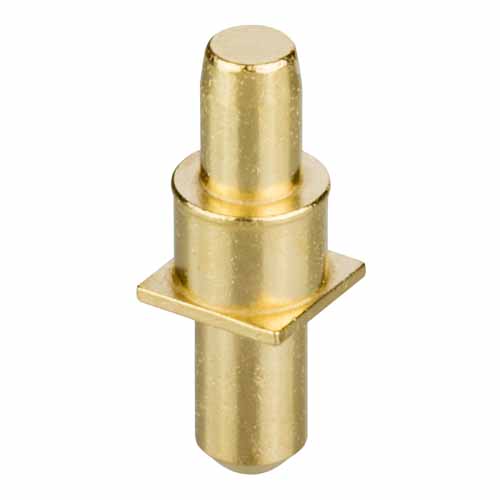

M80-PM1

View Details

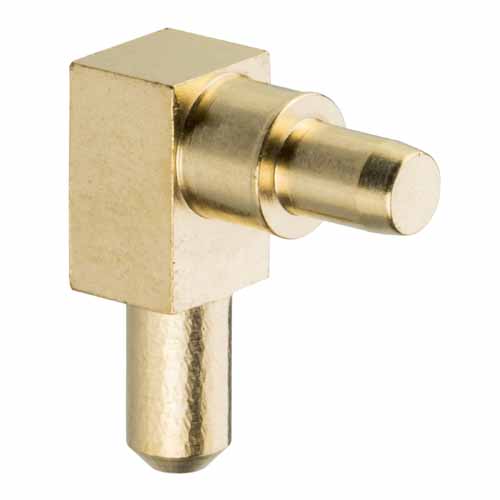

M80-PM3

View Details
