M80-4000000F1-04-326-00-000

Datamate Mix-Tek Female Cable Connector, Hexagonal slotted jackscrews, no signal contacts, 4 x 14 AWG Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $24.622 $1231.1 Single Pack

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder)
Wire Size14 AWG
Number Of Rows1
Current Rating15A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.721g
Dimensions26.00 x 5.50 x 13.00
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-290

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9451602

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-326

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-500000000-04-333-00-000

 View Details
Image 1 Image 1

M80-5000000M1-04-331-00-000

 View Details
Image 1 Image 1

M80-5000000M1-04-333-00-000

 View Details
Image 1 Image 1

M80-5000000M1-04-335-00-000

 View Details
Image 1 Image 1

M80-5000000M1-04-336-00-000

 View Details
Image 1 Image 1

M80-5000000M1-04-337-00-000

 View Details
Image 1 Image 1

M80-5000000M2-04-331-00-000

 View Details
Image 1 Image 1

M80-5000000M2-04-332-00-000

 View Details
Image 1 Image 1

M80-5000000M2-04-335-00-000

 View Details
Image 1 Image 1

M80-5000000M5-04-333-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

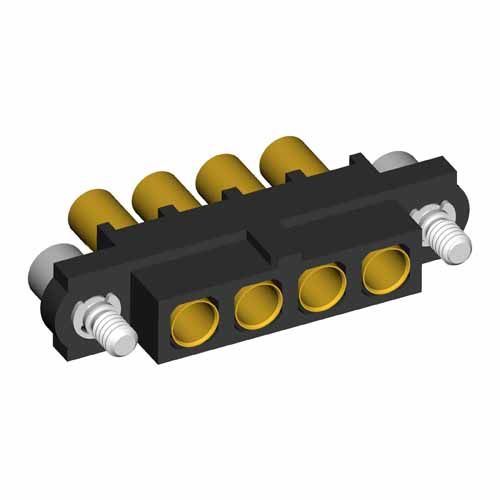

M80-4000000F2-04-326-00-000
