M80-5000000M1-04-333-00-000

Datamate Mix-Tek Male Horizontal Throughboard Connector, Jackscrews, no signal contacts, 4 x 3.5mm Throughboard Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
10 $49.959 $499.59 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Number Of Rows1
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.799g
Dimensions26.00 x 7.55 x 9.50
Above Board Height6.00mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9041602

 View Details
Image 1 Image 1

M80-9051602

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-263F104-00-00

 View Details
Image 1 Image 1

M80-263F204-00-00

 View Details
Image 1 Image 1

M80-263F304-00-00

 View Details
Image 1 Image 1

M80-400000000-04-321-00-000

 View Details
Image 1 Image 1

M80-400000000-04-325-00-000

 View Details
Image 1 Image 1

M80-4000000F1-04-321-00-000

 View Details
Image 1 Image 1

M80-4000000F1-04-325-00-000

 View Details
Image 1 Image 1

M80-4000000F1-04-326-00-000

 View Details
Image 1 Image 1

M80-4000000F1-04-327-00-000

 View Details
Image 1 Image 1

M80-4000000F1-04-328-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

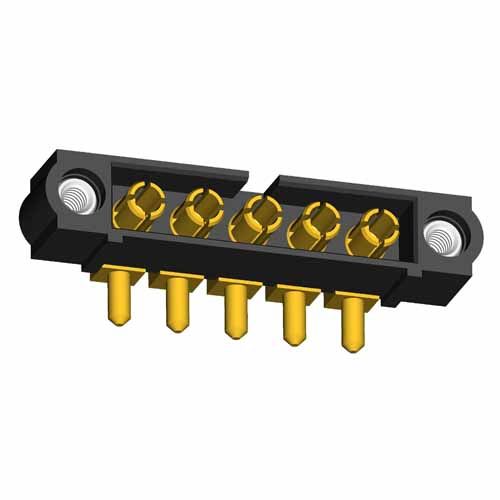

M80-5000000M1-05-333-00-000

 View Details
