M80-4000000F1-06-321-00-000

Datamate Mix-Tek Female Vertical Throughboard Connector, Hexagonal slotted jackscrews, no signal contacts, 6 x 3.5mm Throughboard Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows1
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.219g
Dimensions34.00 x 5.50 x 9.00
Above Board Height5.50mm
End StackableNo

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-500000000-06-339-00-000

 View Details
Image 1 Image 1

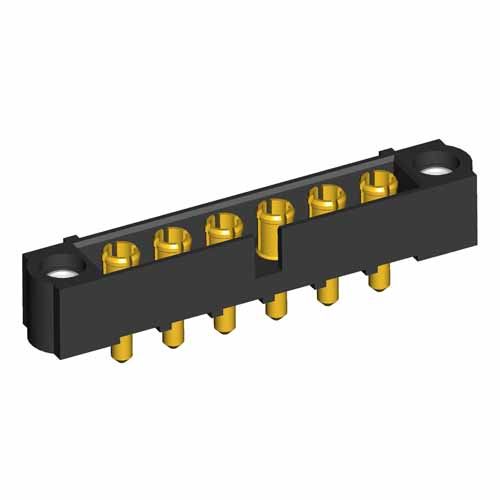

M80-5000000M1-06-331-00-000

 View Details
Image 1 Image 1

M80-5000000M1-06-333-00-000

 View Details
Image 1 Image 1

M80-5000000M1-06-335-00-000

 View Details
Image 1 Image 1

M80-5000000M1-06-337-00-000

 View Details
Image 1 Image 1

M80-5000000M1-06-339-00-000

 View Details
Image 1 Image 1

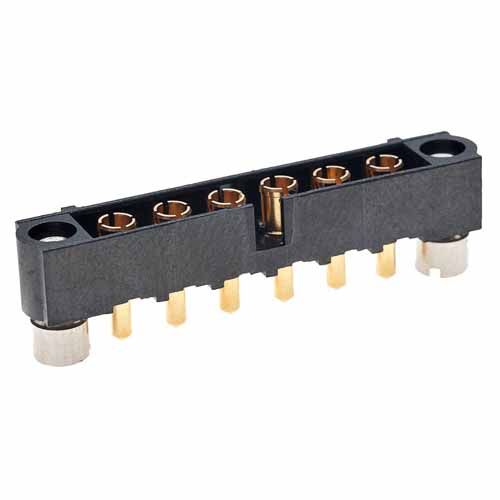

M80-5000000M2-06-331-00-000

 View Details
Image 1 Image 1

M80-5000000M3-06-331-00-000

 View Details
Image 1 Image 1

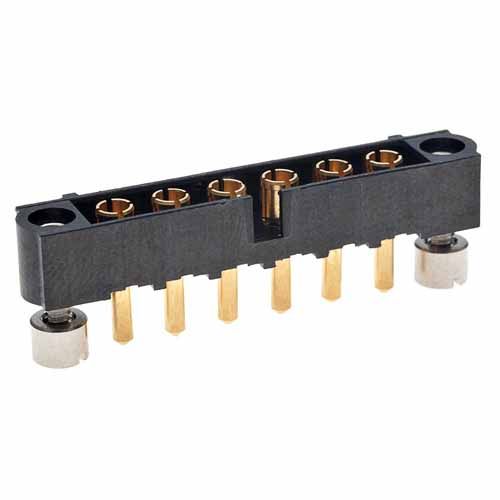

M80-5000000M3-06-332-00-000

 View Details
Image 1 Image 1

M80-5000000M3-06-336-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F2-06-321-00-000

 View Details
