M80-4000000FD-06-321-00-000

Datamate Mix-Tek Female Vertical Throughboard Connector, 101Lok, no signal contacts, 6 x 5mm Throughboard Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch4.00mm (0.157")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew Style101Lok Bayonet Fixing with Slotted Head
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.138g
Dimensions34.00 x 5.50 x 10.88

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

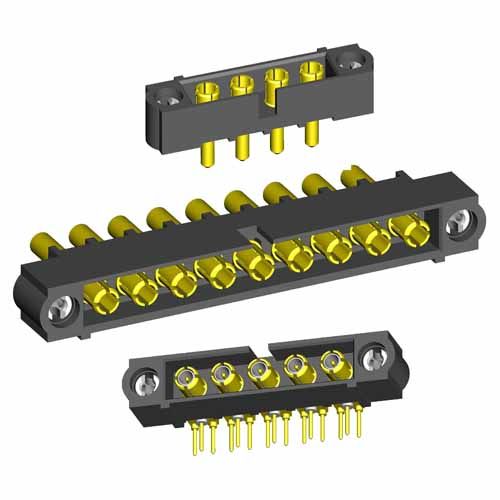

M80-5000000MC-06-331-00-000

 View Details
Image 1 Image 1

M80-5000000MC-06-333-00-000

 View Details
Image 1 Image 1

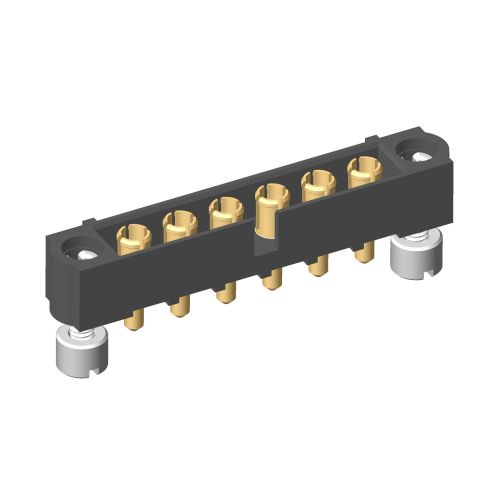

M80-5000000ME-06-331-00-000

 View Details
Image 1 Image 1

M80-273MC06-00-00

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4000000F1-06-321-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

M80-4000000F2-06-321-00-000

View Details

M80-4000000F8-06-321-00-000

View Details

M80-4000000F9-06-321-00-000

View Details
