M80-4004201

Datamate J-Tek DIL Female Vertical 3mm Throughboard Connector, gold clip + tin/lead shell, with jackscrews, 21+21 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 23
All prices are in USD
SPQ: 5		 Quantity Unit Price Ext Price Packaging
100 $15.499 $1549.9 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts42
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)
Termination FinishTin/Lead
Housing MaterialPPS
Flammability RatingUL94V-0
Weight3.626g
Dimensions52.00 x 5.50 x 8.50
Above Board Height5.50mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9424205

 View Details
Image 1 Image 1

M80-9434205

 View Details
Image 1 Image 1

M80-MC24268M1-0450L

 View Details
Image 1 Image 1

M80-5004242

 View Details
Image 1 Image 1

M80-5604205

 View Details
Image 1 Image 1

M80-5614205

 View Details
Image 1 Image 1

M80-5104242

 View Details
Image 1 Image 1

M80-5304242

 View Details
Image 1 Image 1

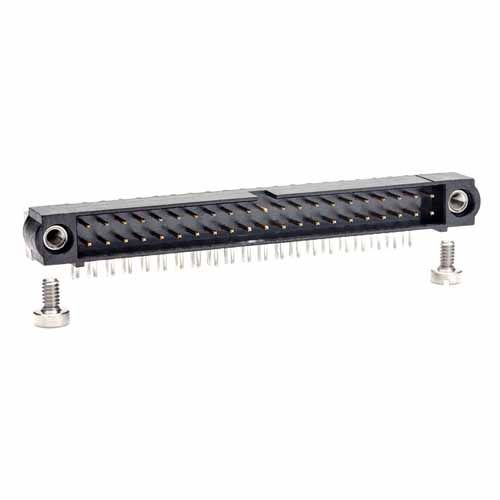

M80-5404222
