M80-4171298

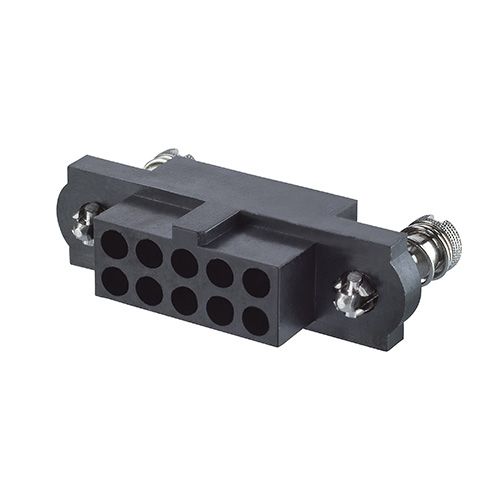

Datamate J-Tek DIL Female Crimp Connector Housing, guide pin jackscrews with 5mm front panel mount studs, accepts 6+6 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 1
Quantity Unit Price Ext Price Packaging
100 $4.02 $402 Bulk/Loose
149 $2.931 $436.719 Bulk/Loose
1000 $2.91 $2910 Bulk/Loose
2500 $2.71 $6775 Bulk/Loose


Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationStraight
Connection TypeCable (Crimp)
Current RatingDependent on assembled contacts
Environmental Ratings-55°C to +125°C
Jackscrew StyleGuide Pin with Front Panel Mount Stud (Standard Gender)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.01g
Dimensions22.00 x 5.50 x 11.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Use with Positioner

Articles from this product series can be use in the following assortments:

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Contacts

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:
