M80-4C10405F1-02-327-00-000

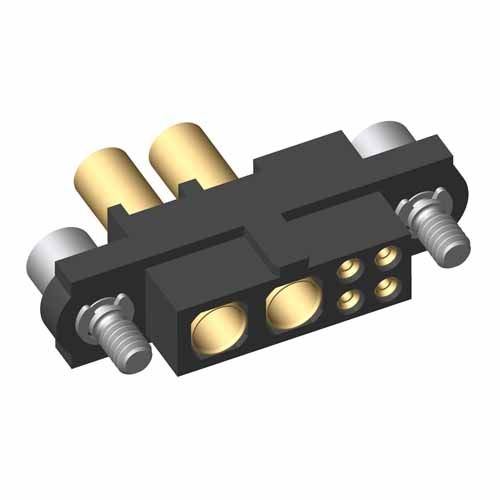

Datamate 2-Row Mix-Tek Female Crimp Connector, Hexagonal slotted jackscrews, 4 x Small Bore (24-28 AWG) signal contacts, 2 x 16 AWG Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA All prices are in USD SPQ: 1	Quantity	Unit Price	Ext Price	Packaging
	50	$21.978	$1098.9	Single Pack

Product Attributes

ManufacturerHarwin

PackageSingle Pack

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch2.00mm/4.00mm (0.079"/0.157")

GenderFemale

OrientationStraight

Connection TypeCable (Solder + Crimp)

Wire Size24-28 AWG + 16 AWG

Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 10A max per contact

Environmental Ratings-55°C to +125°C

Jackscrew StyleFloating Jackscrew with Hex Slotted Head (Standard Gender)

Termination FinishGold

Housing MaterialPPS

Flammability RatingUL94V-0

Weight2.223g

Dimensions22.00 x 5.50 x 13.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool
