M80-4C10405FC-02-PF5-00-000

Datamate 2-Row Mix-Tek Female Crimp Connector, 101Lok fixings, 4 x Small Bore (24-28 AWG) signal contacts, 2 x 10 AWG High Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $42.327 $2116.35 Single Pack

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Wire Size24-28 AWG + 10 AWG
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 40A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew Style101Lok Bayonet Fixing with Slotted Head
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.05g
Dimensions22.00 x 5.50 x 13.70

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0130005

 View Details
Image 1 Image 1

M80-PF5

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C10405FC-02-PF5-00-000

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

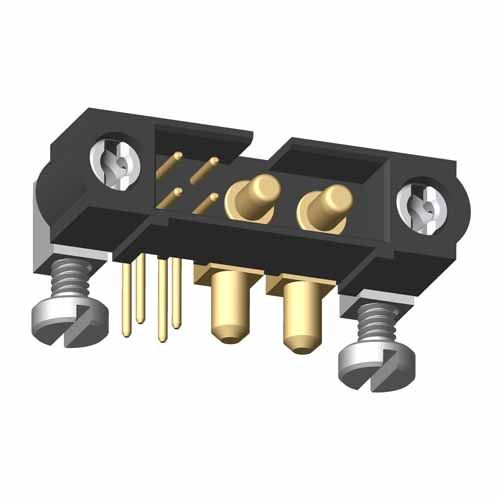

M80-5L10405MD-02-PM3-00-000

 View Details
Image 1 Image 1

M80-5T10405MC-02-PM1-00-000

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C10405F1-02-325-00-000

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
