M80-4C10842F2-02-307-00-000

Datamate 2-Row Mix-Tek Female Crimp Connector, Hex Socket jackscrews, 8 x Small Bore (24-28 AWG) signal contacts, 2 x Ø2.7mm Crimp Coax

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Wire Size24-28 AWG + Ø2.7mm (RG174, RG179, RG316) coax
Number Of RowsMixed
Number Of Contacts8
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Coax = 0.5A per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleFloating Jackscrew with Hex Socket Head (Standard Gender)
Termination Finish100% Tin over Nickel (signal), Gold (power)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.648g
Dimensions26.00 x 5.50 x 13.70
End StackableNo
Mating Pin SizeØ0.5mm (signal)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details
Image 1 Image 1

Z80-292

 View Details
Image 1 Image 1

Z80-293

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z9951-00

 View Details
Image 1 Image 1

Z9953-00

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9461602

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

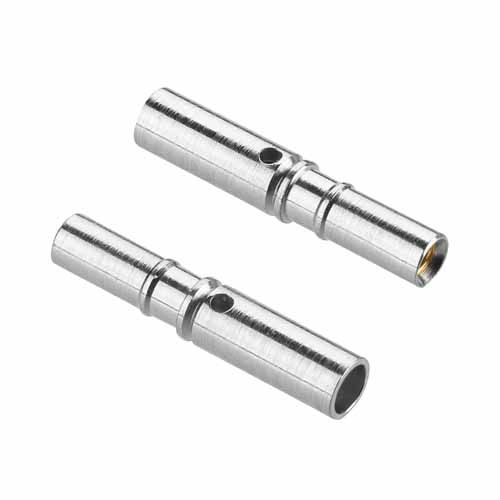

M80-0130001
