M80-4D10205FC-01-326-01-326

Datamate 2-Row Mix-Tek Female Crimp Connector, 101Lok fixings, 2 x Large Bore (22 AWG) signal contacts, 2 x 14 AWG Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationStraight
Connection TypeCable (Solder + Crimp)
Wire Size22 AWG + 14 AWG
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 15A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew Style101Lok Bayonet Fixing with Slotted Head
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.835g
Dimensions20.00 x 5.50 x 12.80

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

T5747

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details
Image 1 Image 1

Z80-290

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-0110005

 View Details
Image 1 Image 1

M80-326

 View Details

Use with Dummy Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-023

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4D10205FC-01-326-01-326

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

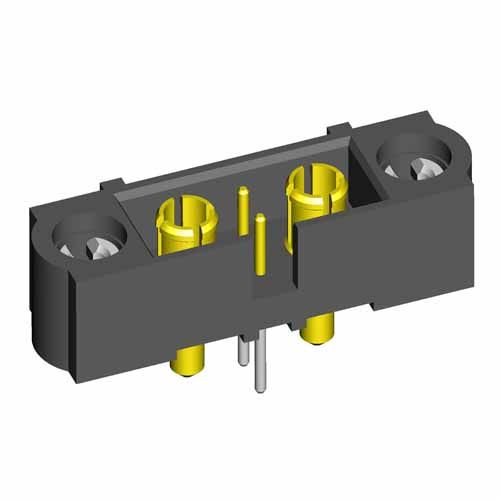

M80-5T20242MC-01-331-01-331
