M80-4S11001F3

Datamate J-Tek DIL Female Vertical SMT Connector, gold clip + tin/lead shell, guide pin with 5mm board mount jackscrews, 5+5 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypeSurface Mount (SMT)
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew StyleGuide Pin with Board Mount Stud (Standard Gender)
Termination FinishTin/Lead
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.735g
Dimensions20.00 x 7.50 x 10.40

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5021022

 View Details

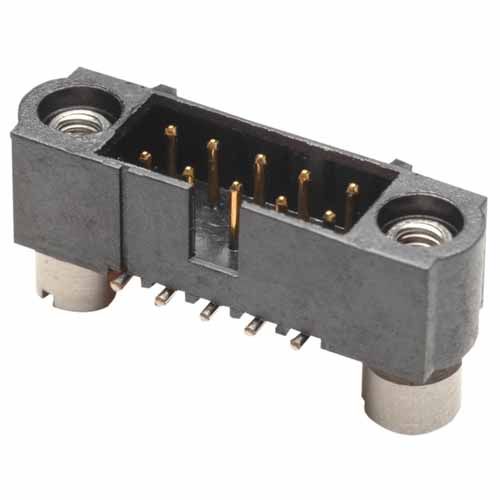

Image 1 Image 1
