M80-4T11042F3

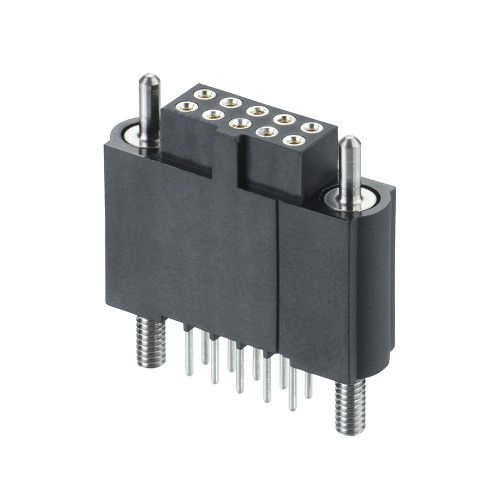

Datamate J-Tek DIL Female Vertical 3mm Throughboard Connector, gold clip + tin shell, guide pin with 5mm board mount jackscrews, 5+5 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 13
Quantity Unit Price Ext Price Packaging
52 $16.144 $839.488 Tube
260 $16.08 $4180.8 Tube
507 $15.61 $7914.27 Tube


Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current Rating3.3A max individual contact, 3A max simultaneous (25°C)
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleGuide Pin with Board Mount Stud (Standard Gender)
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.672g
Dimensions20.00 x 5.50 x 11.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c
