M80-4T10805F3-02-321-00-000

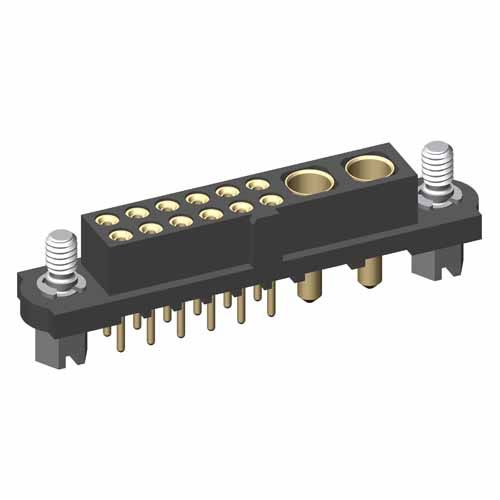

Datamate 2-Row Mix-Tek Female Vertical Throughboard Connector, guide pin with 5mm board mount jackscrews, 8 x 3mm Throughboard signal contacts, 2 x 3.5mm Throughboard Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderFemale
OrientationVertical
Connection TypePC Tail / Throughboard
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleGuide Pin with Board Mount Stud (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2g
Dimensions26.00 x 5.50 x 11.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Screwdriver
