M80-5110842

Datamate J-Tek DIL Male Vertical 4.5mm Throughboard Connector, selective gold + tin, with jackscrews + 5mm board mount, 4+4 contacts

Download Datasheet Request Sample
In-Stock: 28
Factory Lead Time (wks): 23
All prices are in USD
SPQ: 14		 Quantity Unit Price Ext Price Packaging
28 $11.09 $310.52 Tube
112 $9.22 $1032.64 Tube
504 $8.48 $4273.92 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Number Of Rows2
Number Of Contacts8
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.542g
Dimensions18.00 x 6.00 x 10.55
Above Board Height5.55mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingPC Tail / Throughboard

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9060802

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

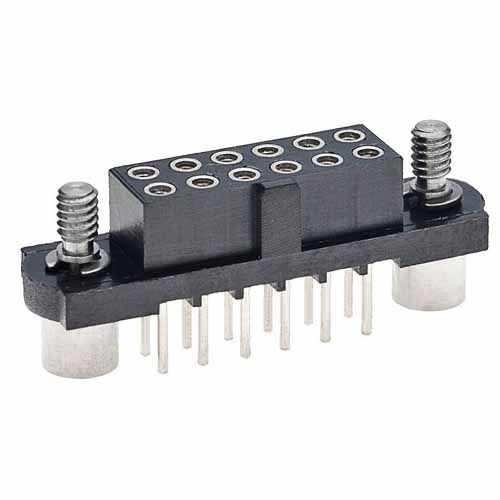

M80-4800842

 View Details
Image 1 Image 1

M80-4E10842F1

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4000842

 View Details
Image 1 Image 1

M80-4130898

 View Details
Image 1 Image 1

M80-4140898

 View Details
Image 1 Image 1

M80-4210805

 View Details
Image 1 Image 1

M80-4600842

 View Details
Image 1 Image 1

M80-4610842

 View Details
Image 1 Image 1

M80-9400842

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5110805

 View Details

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download
FMD

FMD

Download

Related Products

Following products can be suitable for the assortments.

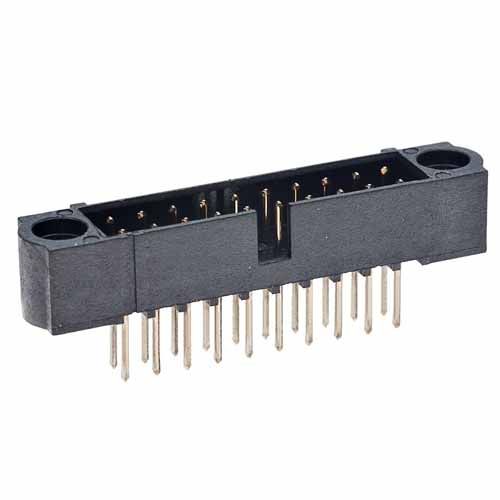

M80-5010805

View Details

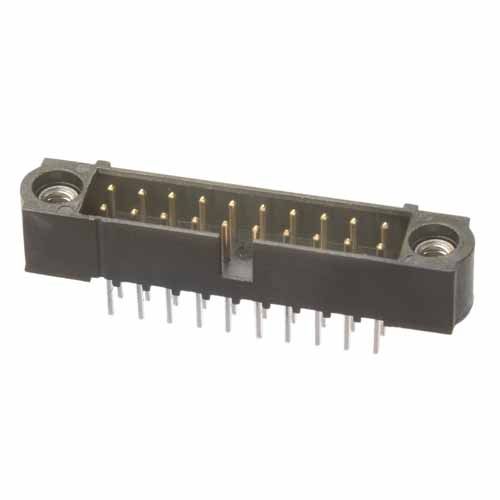

M80-5100842

View Details

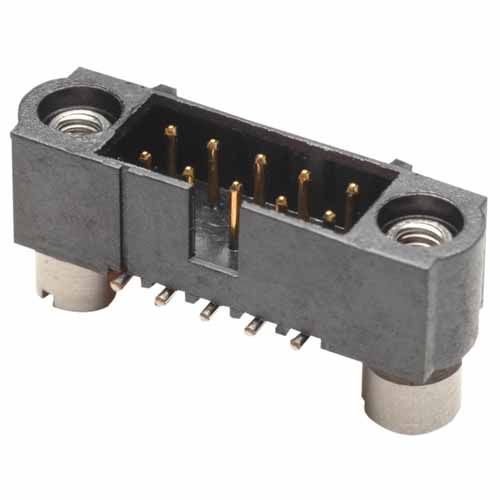

M80-5130842P

View Details

M80-5210805

View Details
