M80-5131605

Datamate J-Tek DIL Male Vertical SMT Connector, gold, with jackscrews + 5mm board mount, 8+8 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): 22
All prices are in USD
SPQ: 10		 Quantity Unit Price Ext Price Packaging
1000 $12.525 $12525 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationVertical
Connection TypeSurface Mount (SMT)
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.58g
Dimensions26.00 x 6.75 x 10.80

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4801605

 View Details
Image 1 Image 1

M80-4E11642F1

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4021605

 View Details
Image 1 Image 1

M80-4131698

 View Details
Image 1 Image 1

M80-4141698

 View Details
Image 1 Image 1

M80-4601605

 View Details
Image 1 Image 1

M80-4611605

 View Details
Image 1 Image 1

M80-FB11668F2-0150L

 View Details
Image 1 Image 1

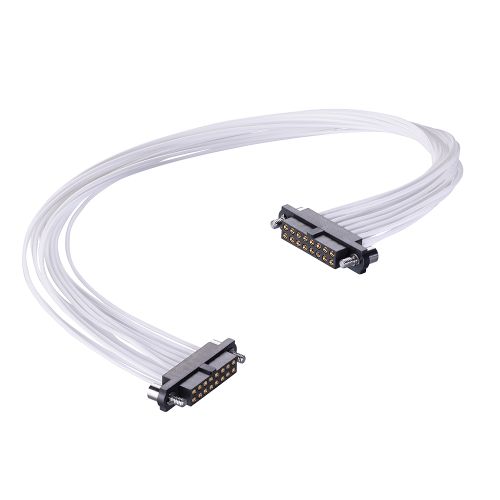

M80-FC31605F2-0300F2

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5131622P

 View Details
