M80-5C10405M1-04-336-00-000

Datamate 2-Row Mix-Tek Male Crimp Connector, Jackscrews, 4 x Small Bore (24-28 AWG) signal contacts, 4 x 14 AWG Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin

PackageSingle Pack

Product FamilyHRi

Product StatusActive

RangeDatamate

Pitch2.00mm/4.00mm (0.079"/0.157")

GenderMale

OrientationStraight

Connection TypeCable (Solder + Crimp)

Wire Size24-28 AWG + 14 AWG

Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 15A max per contact

Environmental Ratings-55°C to +125°C

Jackscrew StyleInternal Thread Jackscrew (Standard Gender)

Termination FinishGold

Housing MaterialPPS

Flammability RatingUL94V-0

Weight2.901g

Dimensions30.00 x 6.00 x 12.70

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

M22520/2-01

View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Z80-193

View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Z80-280

View Details

Z80-290

View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

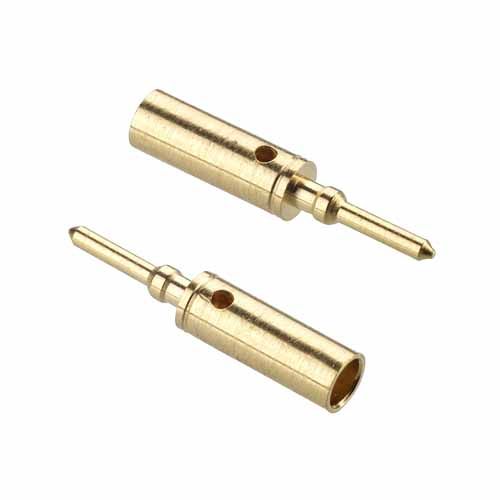

M80-1950005

View Details

M80-336

View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

M80-5C10405M1-04-336-00-000

View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

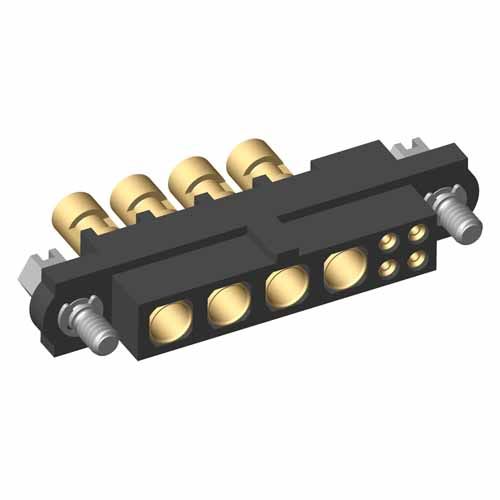

M80-4C10405F1-04-325-00-000

View Details

M80-4C10405F1-04-326-00-000

View Details

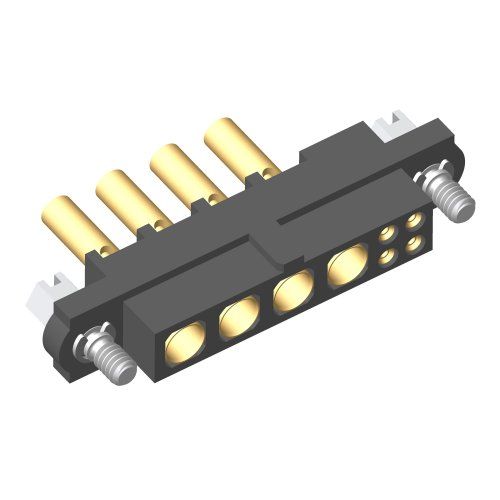

M80-4C10405F1-04-329-00-000

View Details

M80-4C10405F2-04-325-00-000

View Details

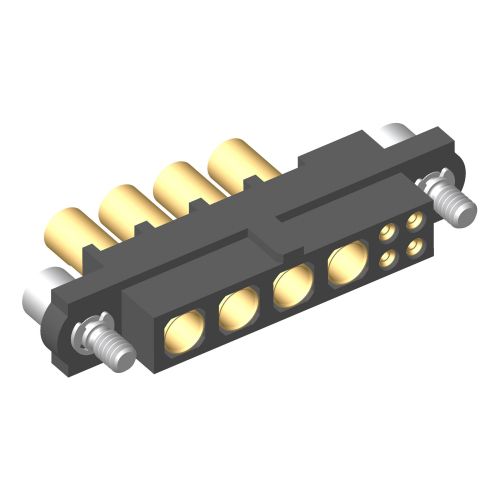

M80-4C10405F2-04-327-00-000

View Details

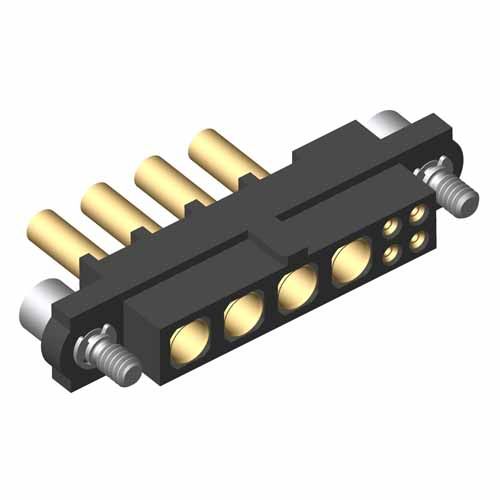

M80-4C10405F2-04-328-00-000

View Details

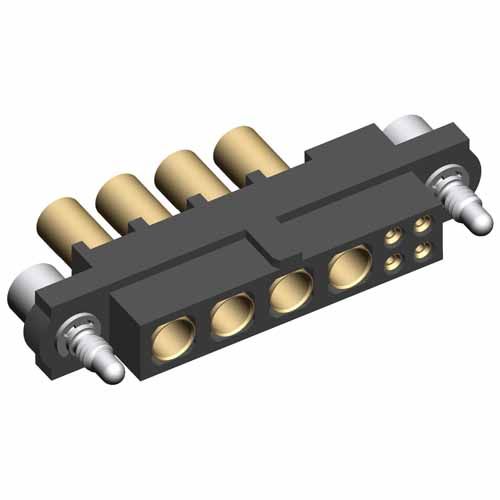

M80-4C10405FB-04-326-00-000

View Details

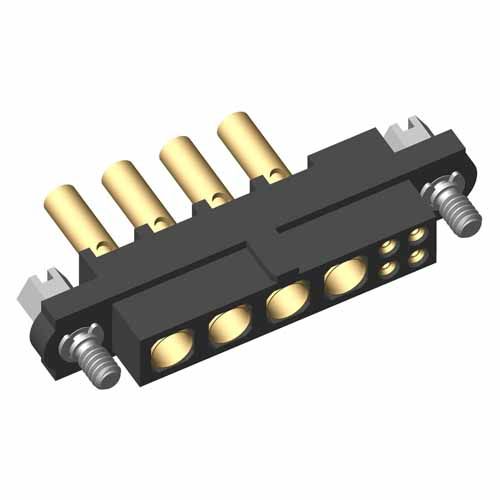

M80-4D10405F1-04-328-00-000

View Details

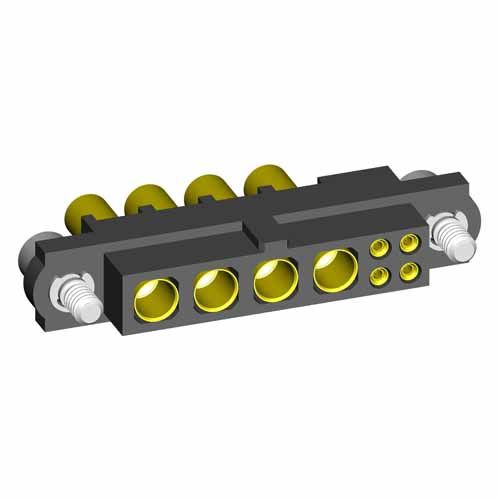

M80-4D10405F2-04-327-00-000

View Details

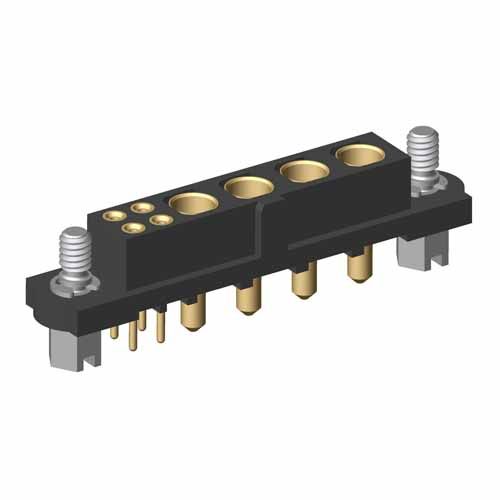

M80-4T10405F1-04-321-00-000
