M80-5C10605M3-02-339-00-000

Datamate 2-Row Mix-Tek Male Crimp Connector, Jackscrews + 5mm front panel mount, 6 x Small Bore (24-28 AWG) signal contacts, 2 x 20 AWG Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: =VLOOKUP(H7206,'[1]trustpart 2025'!$B$2:$D$15982,3,0)
Quantity Unit Price Ext Price Packaging
50 $23.142 $1157.1 Single Pack


Product Attributes

ManufacturerHarwin
PackageSingle Pack
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG + 20 AWG
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 5A max per contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Front Panel Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.816g
Dimensions24.00 x 6.00 x 14.00

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

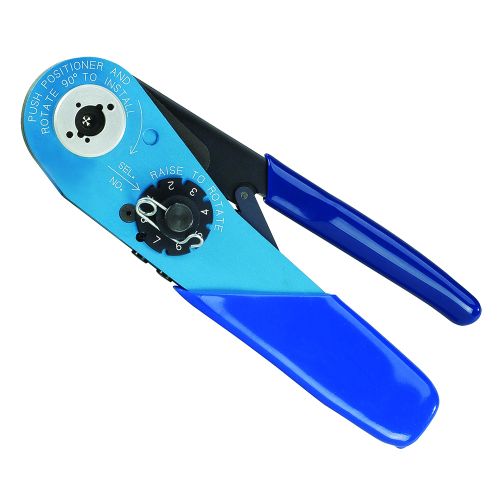

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

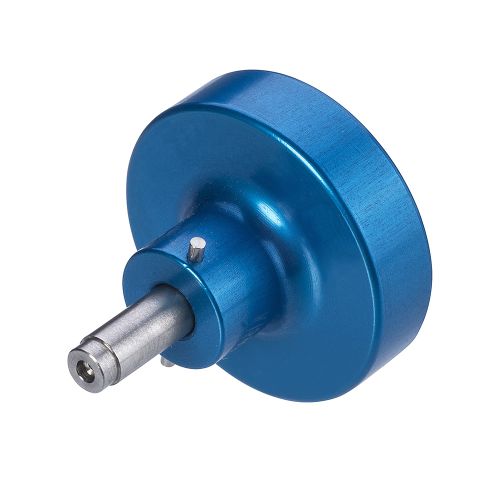

Use with Positioner

Articles from this product series can be use in the following assortments:

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Use with Hoods

Articles from this product series can be use in the following assortments:

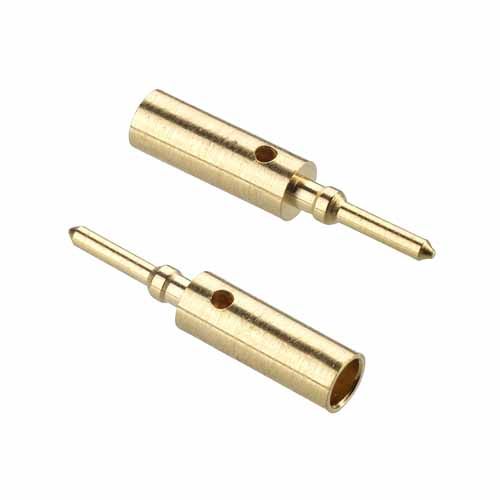

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Use with Connector Series

Articles from this product series can be use in the following assortments:

Use with Accessory

Articles from this product series can be use in the following assortments:

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Documents & Media

Component Spec

Component Spec

Download
Product Training Module

Product Training Module

Product Datasheet

Product Datasheet

Download
Web Address

Web Address

Download

Related Products

Following products can be suitable for the assortments.

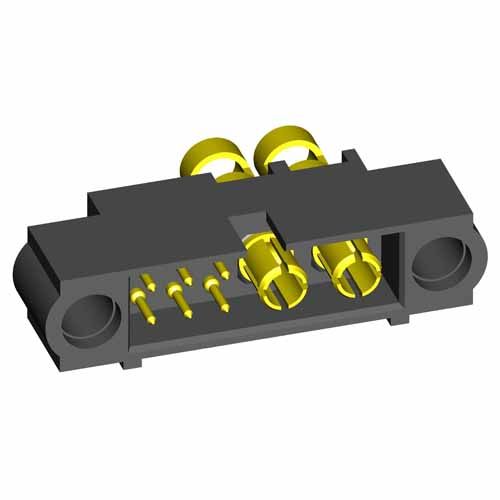

M80-5C1060500-02-335-00-000
