M80-5C11405M2

Datamate J-Tek DIL Male Small Bore (24-28 AWG) Crimp Connector, gold, with jackscrews + 3.5mm front panel mount, 7+7 contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 1		 Quantity Unit Price Ext Price Packaging
50 $13.126 $656.3 Bulk/Loose
250 $12.93 $3232.5 Bulk/Loose
500 $12.65 $6325 Bulk/Loose

Product Attributes

ManufacturerHarwin
PackageBulk/Loose
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationStraight
Connection TypeCable (Crimp)
Wire Size24-28 AWG
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Jackscrew StyleInternal Thread Jackscrew with Front Panel Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishGold
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.398g
Dimensions24.00 x 6.00 x 9.05

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with Exemption 6c

Use with Hand Crimp Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M22520/2-01

 View Details

Use with Positioner

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-193

 View Details

Use with Insertion Removal Tool

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-280

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9061402

 View Details

Use with Spare Contacts

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-1950005

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4801405

 View Details
Image 1 Image 1

M80-4E11405F1

 View Details
Image 1 Image 1

M80-4T11405F3

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4001442

 View Details
Image 1 Image 1

M80-4131498

 View Details
Image 1 Image 1

M80-4141498

 View Details
Image 1 Image 1

M80-4201442

 View Details
Image 1 Image 1

M80-4601405

 View Details
Image 1 Image 1

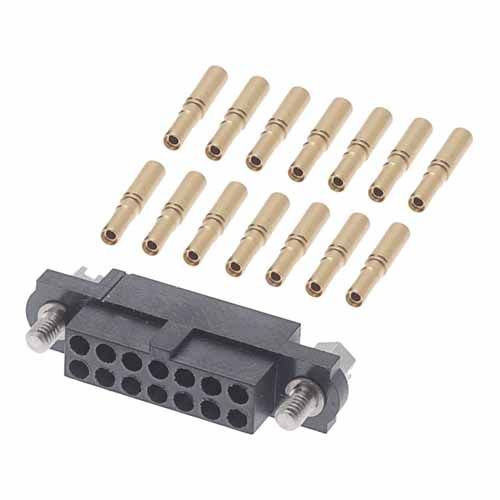

M80-4611405

 View Details

Use with Primary Alternative

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5C11605M2

 View Details
