Home - Products - Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins - M80-5L20422M5-00-000-02-334
Product Images

M80-5L20422M5-00-000-02-334

Datamate 2-Row Mix-Tek Male Horizontal Throughboard Connector, Jackscrews + 5mm board mount bolts, 4 x 4.5mm Throughboard signal contacts, 2 x 5mm Throughboard Power contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationHorizontal
Connection TypePC Tail / Throughboard
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew StyleInternal Thread Jackscrew with Slotted Board Mount Bolts (Standard Gender)
Termination FinishTin/Lead (signal), Gold (power)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.914g
Dimensions22.00 x 8.60 x 11.00

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9041202

 View Details
Image 1 Image 1

M80-9051202

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5L20422M5-00-000-02-334

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2270000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

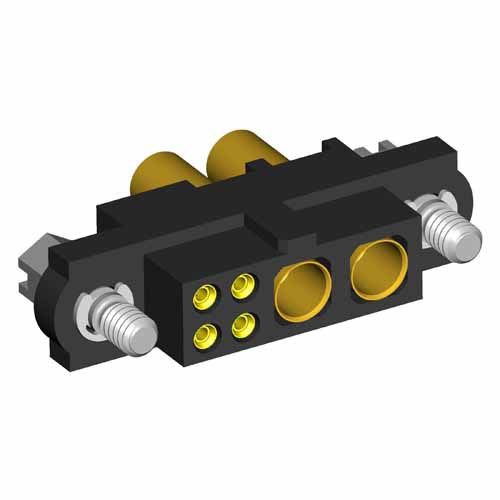

M80-4D10405F1-00-000-02-327
