M80-5S21242MC

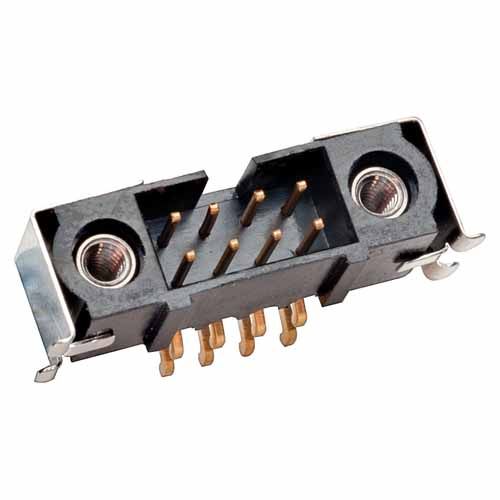

Datamate J-Tek DIL Male Horizontal SMT Connector, selective gold + tin, retainers for 101Lok, 6+6 contacts

Contact Sales

Download Datasheet Request Sample

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm (0.079")
GenderMale
OrientationHorizontal
Connection TypeSurface Mount (SMT)
Number Of Rows2
Number Of Contacts12
Current RatingDependent on mating contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 260°C for 10 seconds
Jackscrew Style101Lok Bayonet Receptacle Fixing
Termination Finish100% Tin over Nickel
Housing MaterialPPS
Flammability RatingUL94V-0
Weight1.295g
Dimensions22.00 x 10.10 x 6.00
Above Board Height6.00mm
End StackableNo
Mating Pin SizeØ0.5mm
Pcb MountingSurface Mount (SMT)

Environmental and Export

Rohs StatusRoHS Compliant (2015/863/EU) with no Exemption required

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-4C11205FC

 View Details
Image 1 Image 1

M80-4C11242FC

 View Details
Image 1 Image 1

M80-4D11205FC

 View Details
Image 1 Image 1

M80-4D11205FR

 View Details
Image 1 Image 1

M80-4D11242FC

 View Details
Image 1 Image 1

M80-4E11242FC

 View Details
Image 1 Image 1

M80-2060005

 View Details
Image 1 Image 1

M80-4181298

 View Details
Image 1 Image 1

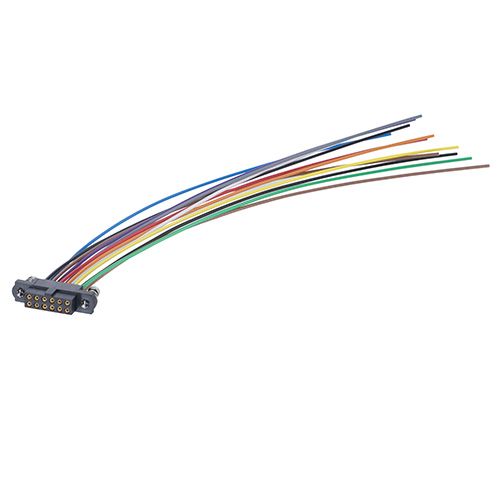

M80-FC21268FC-0150L
