M80-5T10822M2-03-331-00-000

Datamate 2-Row Mix-Tek Male Vertical Throughboard Connector, Jackscrews + 3.5mm board mount, 8 x 3mm Throughboard signal contacts, 3 x 3.5mm Throughboard Power contacts

Download Datasheet Request Sample

Factory Lead Time (wks): TBA
All prices are in USD
SPQ: 8		 Quantity Unit Price Ext Price Packaging
112 $28.178 $3155.936 Tube

Product Attributes

ManufacturerHarwin
PackageTube
Product FamilyHRi
Product StatusActive
RangeDatamate
Pitch2.00mm/4.00mm (0.079"/0.157")
GenderMale
OrientationVertical
Connection TypePC Tail / Throughboard
Current RatingSignal = 3.3A max individual contact, 3A max simultaneous; Power = 20A max per contact
Environmental Ratings-55°C to +125°C
Soldering DataMax Solder Temperature: 235°C for 5 seconds
Jackscrew StyleInternal Thread Jackscrew with Board Mount Stud and Slotted Nuts (Standard Gender)
Termination FinishTin/Lead (signal), Gold (power)
Housing MaterialPPS
Flammability RatingUL94V-0
Weight2.46g
Dimensions30.00 x 6.00 x 9.05

Environmental and Export

Rohs StatusNot RoHS Compliant (2015/863/EU)

Use with Screwdriver

Articles from this product series can be use in the following assortments:

Image 1 Image 1

Z80-298

 View Details

Use with Hoods

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-9062002

 View Details

Use with Connector Series

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-5T10822M2-03-331-00-000

 View Details

Use with Accessory

Articles from this product series can be use in the following assortments:

Image 1 Image 1

M80-2130000B

 View Details

Use with Mating Products

Articles from this product series can be use in the following assortments:

Image 1 Image 1

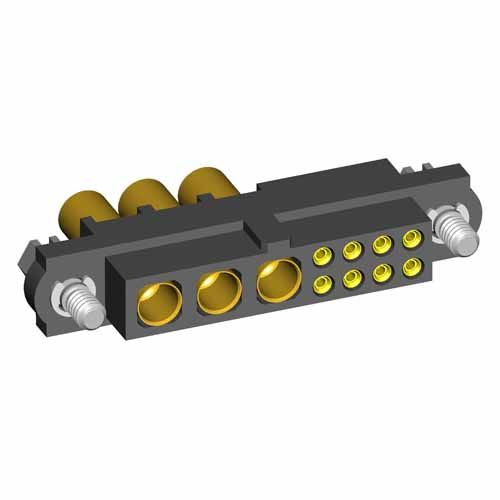

M80-4C10805F1-03-325-00-000

 View Details
Image 1 Image 1

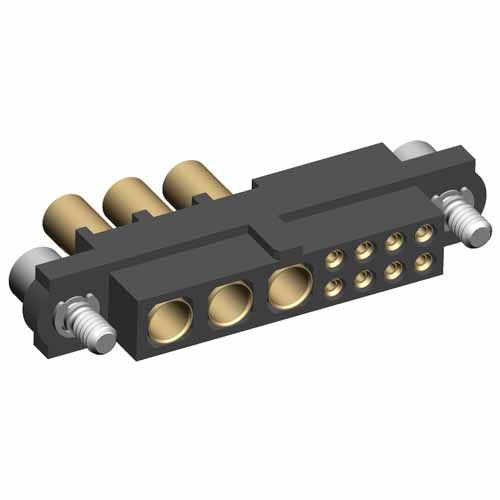

M80-4C10805F2-03-327-00-000
